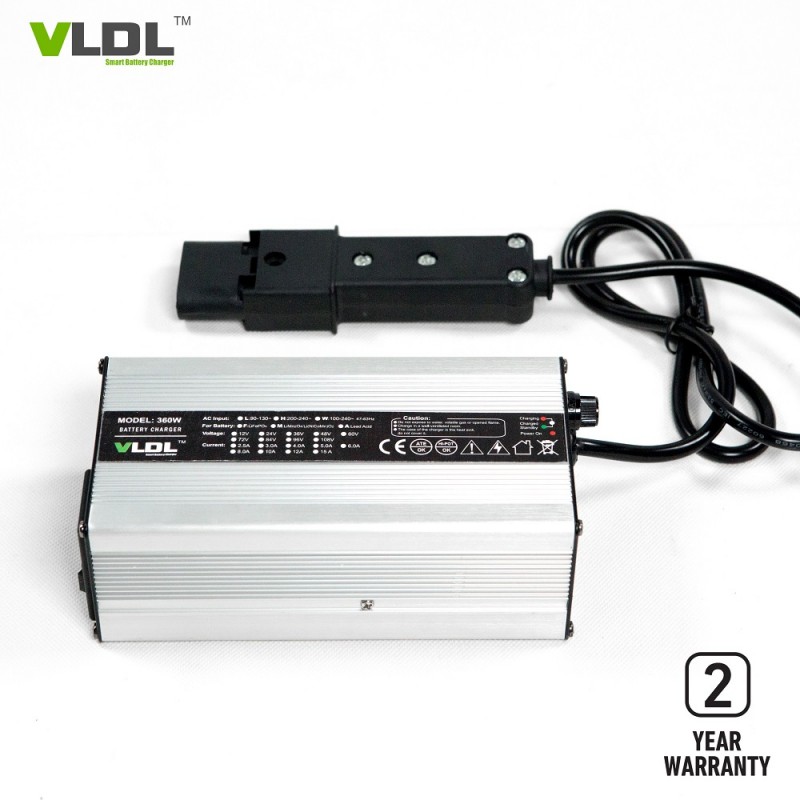

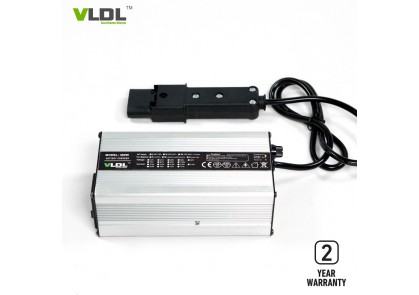

24V 12A Li-ion Battery Charger

China 24V 12A Lithium Battery Chargers Manufacturer/Factory

Brief Description:

Lithium battery charger 24 volts 12 amps, input with AC 110 / 230Vac and rated output voltage is DC 24V 12A. Smart max charging voltage is 28.8V 29.2V for Li-ion, LiFePO4, LiMnO2 type batteries. Intelligent 4 stages charging with CC, CV steps, this charger will charge your battery powered electric scooters, motorcycles very fast, with high efficiency and protect your battery life maximum. High quality, factory price and 2 years warranty.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ AC input 110/230Vac, 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 88%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 170 x 90 x 63 mm

2) Net weight: 1.5 KG

3) Max charging voltage(CV): 28.8 / 29.4Vdc

4) Floating voltage: /

5) Max output current (CC): 12 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 110 or 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, UK, EU, India, AU etc.

10) Output connector type: XLR, Anderson, Clips, RCA etc.

11) Enclosure: Aluminum
