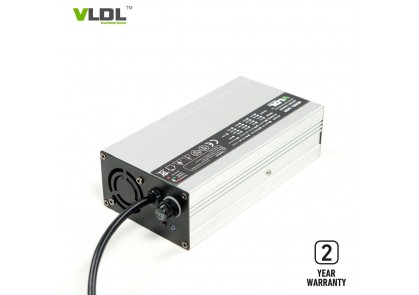

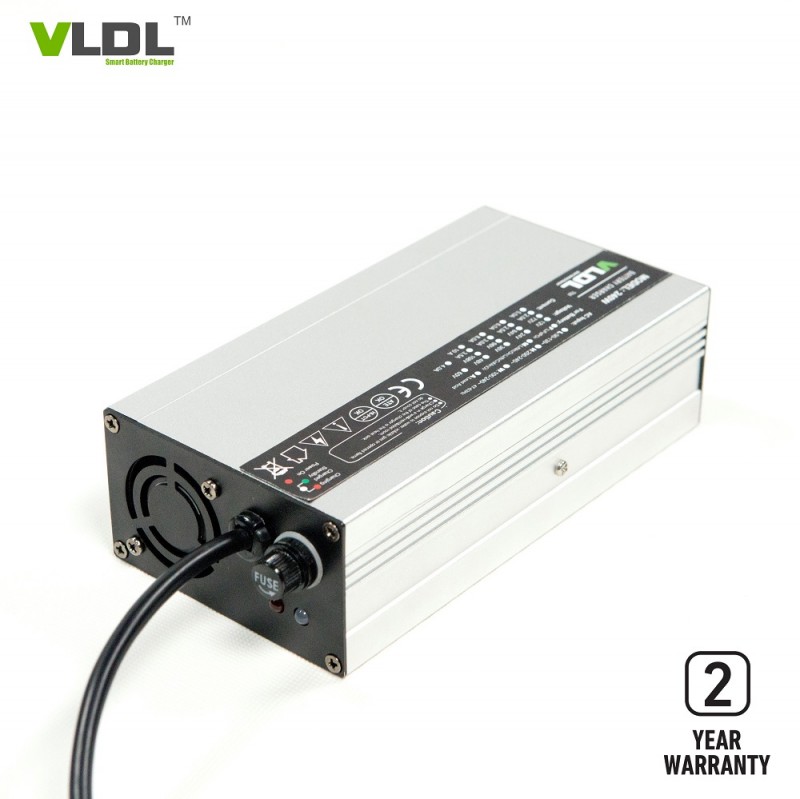

24V 10A Lead Acid Battery Charger

24V 10A Smart Lead Acid Battery Charger

Brief Descriptions:

Lead acid Battery Charger 24V 10A is designed for SLA, AGM, GEL battery powered electric vehicles, input voltage 110 or 230Vac and rated output voltatge is 24V 10A. Smart max charging voltage is 29.4 for Lead acid batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110 / 230Vac, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 170 × 90× 63 MM

2) Net weight: 1.5 KG

3) Max charging voltage(CV): 29.4 volt

4) Floating voltage: 27.6V

5) Max output current (CC): 10 amps

6) Charging method: automtaic CC, CV and Float

7) AC input voltage: 110 or 230 Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, AU, UK, Euro

10) Output connector type: Clips, Anderson

11) Enclosure: Aluminum
