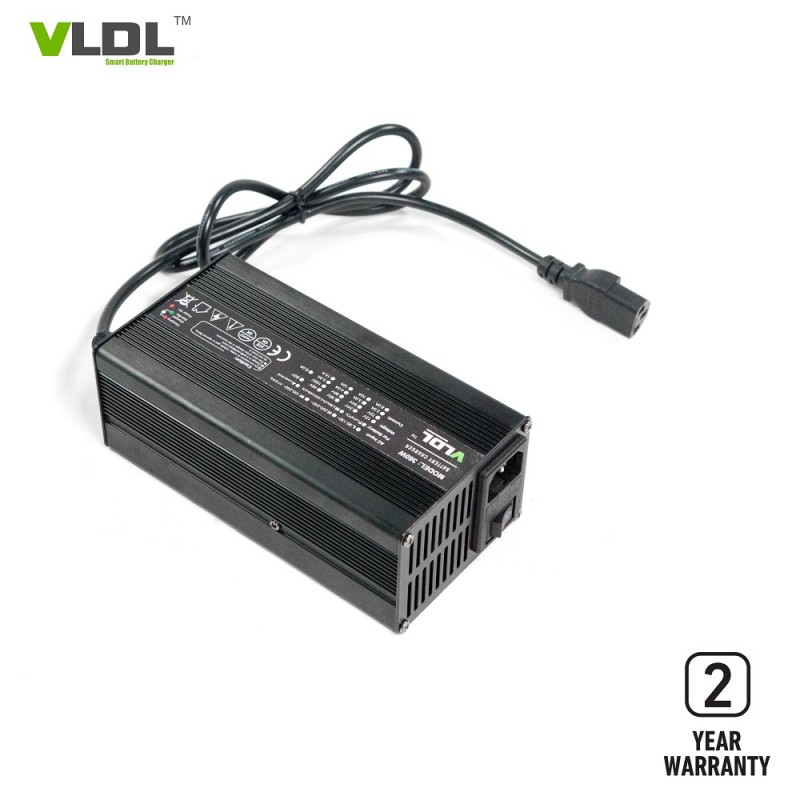

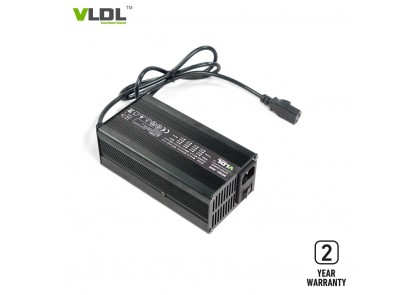

24V 10A Battery Charger

24V 10A Smart Lead-acid Battery Charger

Brief Descriptions:

Lead-acid Battery Charger 24V 10A is designed for SLA, AGM, GEL battery powered electric vehicles, input voltage 110 or 230Vac and rated output voltatge is 24V 10A. Smart max charging voltage is 29.2/29.4V for lead acid batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110 / 230Vac, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 88%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 170 × 90× 63 MM

2) Net weight: 1.5 KG

3) Max charging voltage(CV): 29.4 / 29.2 volt

4) Floating voltage: /

5) Max output current (CC): 10 amps

6) Charging method: automtaic CC, CV, Floating

7) AC input voltage: 110 or 230 Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, AU, UK, Euro

10) Output connector type: Clips, Anderson

11) Enclosure: Aluminum

300W battery charger    Size: 170×90×63 mm          Net weight: 1.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 110 - 230V Frequency: 47~63HZ	VL1220L	12V LiFePO4 Battery		14.6V	20A	CC5~8%
	VL1220	12V Lead-acid Battery	13.5V	14.7V	20A	CC20%
	VL1420	14V AGM Battery	13.5V	14.4V	20A	CC20%
	VL1620L	16V LiFePO4 Battery		18.2V	20A	CC5~8%
	VL2410LM	24V Li-MnO2 Battery		29.4V	10A	CC5~8%
	VL2410L	24V LiFePO4 Battery		29.2V	10A	CC5~8%
	VL2410	24V Lead-acid Battery	27.6V	29.4V	10A	CC20%
	VL3608LM	36V Li-MnO2 Battery		42V	8A	CC5~8%
	VL3608L	36V LiFePO4 Battery		43.8V	8A	CC5~8%
	VL3608	36V Lead-acid Battery	41.4V	44.1V	8A	CC20%
	VL4805LM	48V Li-MnO2 Battery		54.6V	5A	CC5~8%
	VL4805L	48V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL4805	48V Lead-acid Battery	55.2V	58.8V	5A	CC20%
	VL6004L	60V LiFePO4 Battery		73V	4A	CC5~8%
	VL6004	60V Lead-acid Battery	67.5V	73.5V	4A	CC20%
