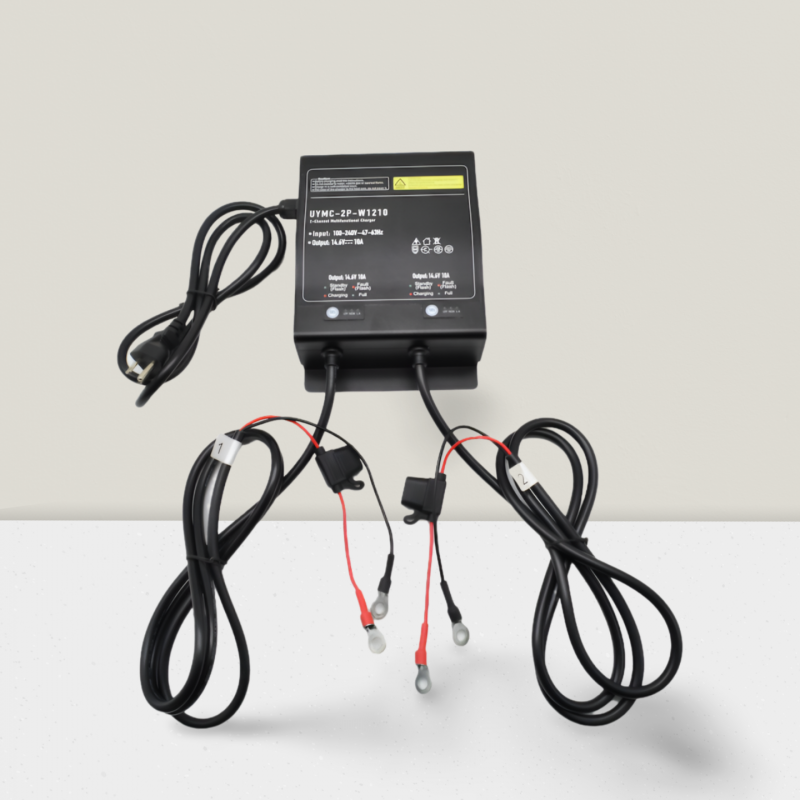

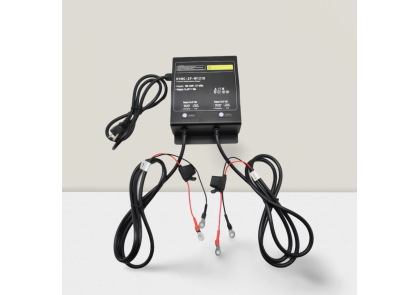

2 Bank 36V 8A Marine Battery Charger

2 Banks 36V 8A Marine / Waterproof Battery Charger

We have launched a series of New Waterproof Battery Charger with 2 banks, 3 banks and 4 banks.

Features:

Universal input voltage: 110-230Vac

With PFC and Power Factor: >0.98

Waterproof rate: IP66

Output banks: 2, 3 and 4 isolated outputs

Output options:

a. 36V 8A x 2

b. 48V 5A x 4

c. 48V 4A x 4

d. 12V 10A x 4

e. 12V 10A x 2 + 24V 10A x 2

f. 12V 10A x 2 + 36V 10A x 2

g. 12V 15A x 4

Support for 3 different battery types: NCM, LiFePO4 and Lead-acid

Small size: 230*157*63 mm

Light weight: 3.5 kg

This SEL selector for choosing battery types:

1. LPF: LiFePO4 Battery

2. NCM: LioO2, LiNiO2 and LiMnO2 Battery

3. Lead Acid: AGM, GEL and SLA battery

Just select the button of "SEL" by your battery type before charging and start smart charging with set Pre-charge, CC, CV, Floating or Cut-off automatically.

Do not need to buy three different chargers for your different batteries. Money saving and space saving.

Charging steps:

1. Pre charging (start with small current charging to protect battery)

2. Constant current (CC mode: charging with max charging current)

3. Constant voltage (CV mode: current is dropping till fully charged)

4. Floating (only for lead-acid battery)

As a leading Smart Battery Charger supplier and manufacturer, Danl continues to supply high quality battery chargers and provide best after service for our customers.

This high quality and IP665/IP66 2 bank 36V 8A marine/waterproof battery charger can charge 2pcs 36V lithium or lead acid battery packs at the same time with four isolated DC output.

Reliable VLDL battery charger with 3 years warranty and competitive factory price.

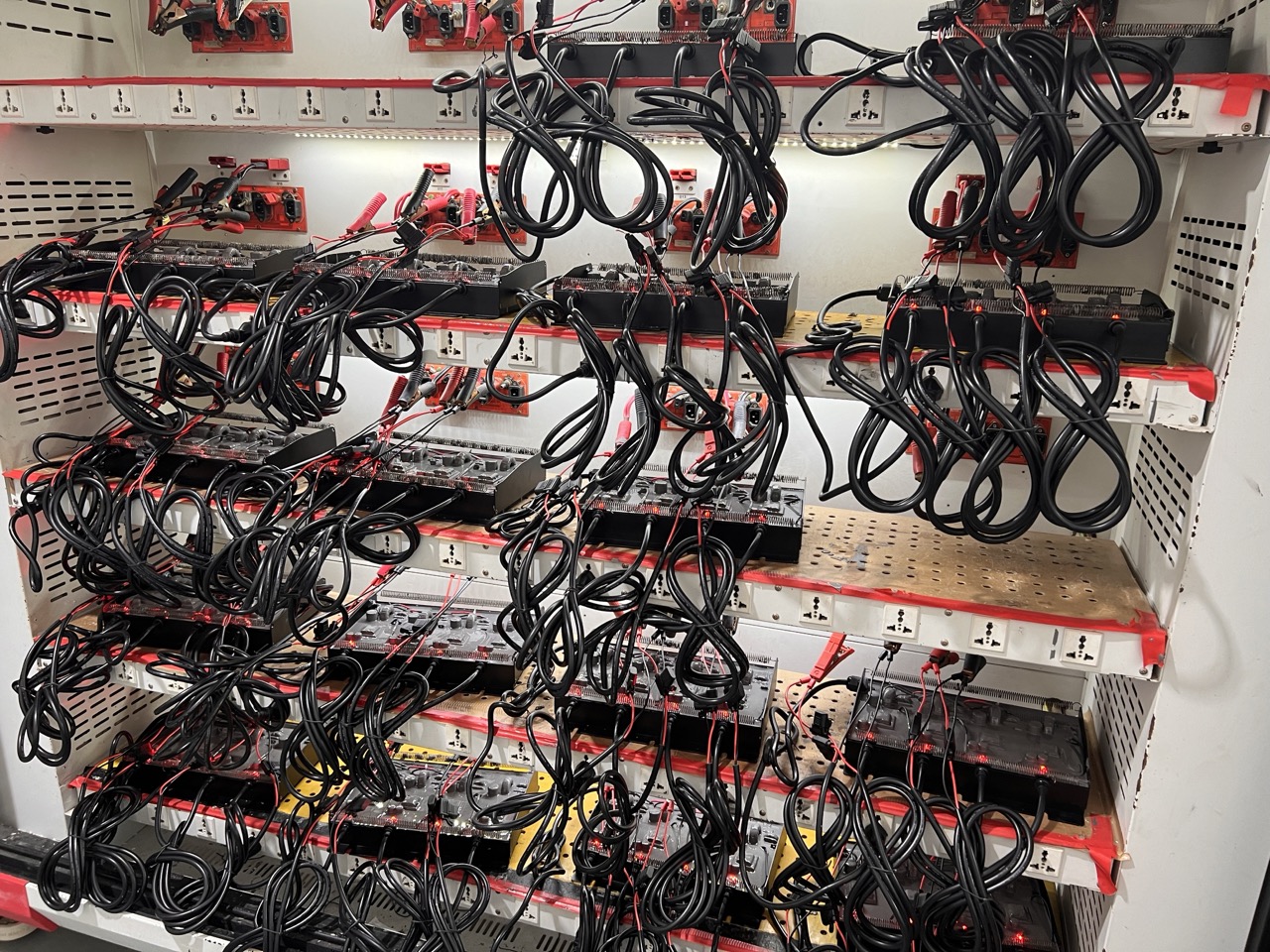

800pcs 4 multi bank marine / waterproof battery chargers are in aging test and packing, all will be shipped to US market.
