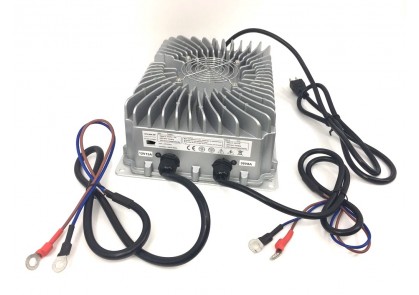

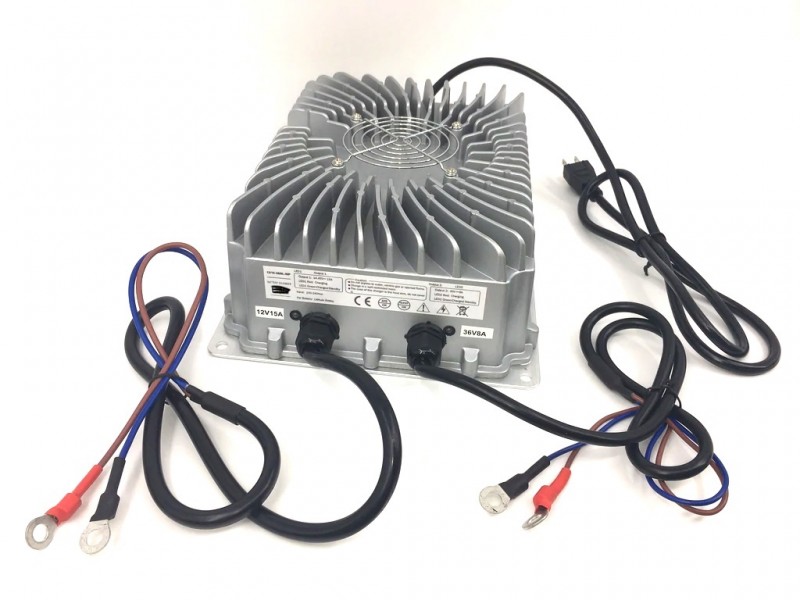

2 Bank 24V/36V Marine Battery Charger
Item No.: VL2410-3608L-WP
Dimension: 310*230*101mm
Net weight: 8.0kg
Input voltage: wide 110-230Vac
Case material: sealed aluminum
WaterProof rate: IP65 / IP66
Output rated: 2 banks with 24V10A & 36V8A
Max charging: 29.2V & 43.8V customized
Applied to battery Types: 24V & 36V Lithium Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details
2 Bank 24V 10A & 36V 8A Waterproof Battery Charger
Brief Descriptions:
2 Banks 24V 10A & 36V 8A multi outputs Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage.
29.2V & 43.8V customized max charging voltage for Lithium batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
2 years warranty, high quality.
Technical Specs.:
Dimensions: 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 29.2V & 43.8 volt (customized)
Max output current (CC): 10A & 8A amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal
AC input frequency.: 50 / 60 Hz
AC plug types: UK, Euro, US, AU, India
Output connector types: supply free Clips, Anderson 50A.
Enclosure: Aluminum
Waterproof rate: IP65 / IP66
