2-Bank 12V/24V Waterproof Battery Charger
Item No.: VL12/15-2410L-WP
Dimension: 310*230*101mm
Net weight: 8.0kg
Input voltage: wide 110-230Vac
Case material: sealed aluminum
WaterProof rate: IP65 / IP66
Output rated: 2 banks with 12V15A & 24V10A
Max charging: 14.4V & 29.2V customized
Applied to battery Types: 12V & 24V Lithium Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details

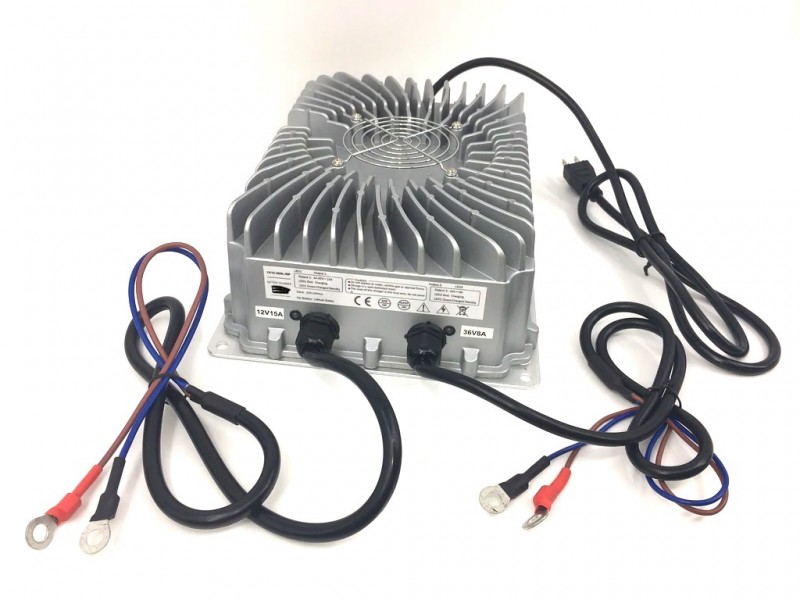

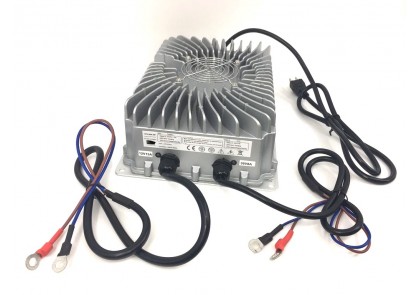

2-Bank 12V 15A & 24V 10A Waterproof Battery Charger
Brief Descriptions:
2 Banks 12V15A & 24V10A multi outputs Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage.
14.4V & 29.2V customized max charging voltage for Lithium batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
2 years warranty, high quality.
Technical Specs.:
Dimensions: 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 14.4V & 29.2 volt (customized)
Max output current (CC): 15A & 10A amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal
AC input frequency.: 50 / 60 Hz
AC plug types: UK, Euro, US, AU, India
Output connector types: supply free Clips, Anderson 50A.
Enclosure: Aluminum
Waterproof rate: IP65 / IP66

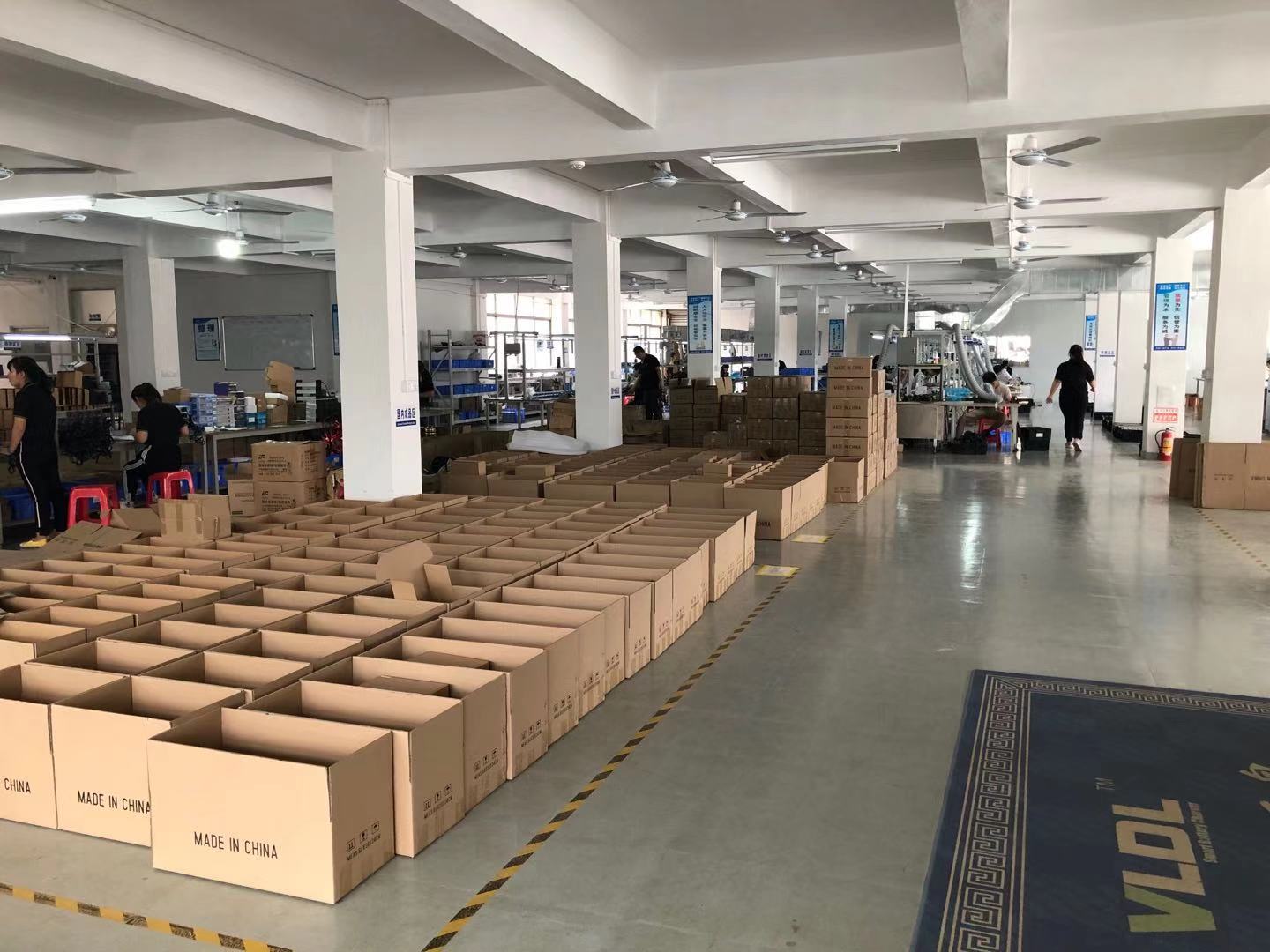

Factory:
| 1,500W waterproof charger Size: 310×230×101 mm Net weight: 8.0 KG | |||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching | |
|
PFC AC Input: 90 - 264V
Frequency: 47~63HZ
|
VL1260LWP | 12V LiFePO4 Battery |
|
14.6V | 60A | CC5~8% | |
| VL1260WP | 12V Lead-acid Battery | 13.5V | 14.7V | 60A | CC20% | ||
| VL1460WP | 14V AGM Battery | 13.5V | 14.4V | 60A | CC20% | ||
| VL1660WPL | 16V LiFePO4 Battery |
|
18.2V | 60A | CC5~8% | ||
| VL2445LMWP | 24V Li-MnO2 Battery |
|
29.4V | 45A | CC5~8% | ||
| VL2445LWP | 24V LiFePO4 Battery |
|
29.2V | 45A | CC5~8% | ||
| VL2445WP | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | ||
| VL3630LMWP | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | ||
| VL3630LWP | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | ||
| VL3630WP | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | ||
| VL4825LMWP | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | ||
| VL4825LWP | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | ||
| VL4825WP | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | ||
| VL6018LWP | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | ||
| VL6018WP | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | ||
| VL7215LWP | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | ||
| VL7215WP | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | ||
| VL8413LWP | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% | ||
| VL8413WP | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | ||
| VL9612LWP | 96V LiFePO4 Battery |
|
116.8V | 12A | CC5~8% | ||
| VL9612WP | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% | ||
|
Note: customized input / output / plug type / connectors are available. |
|||||||
