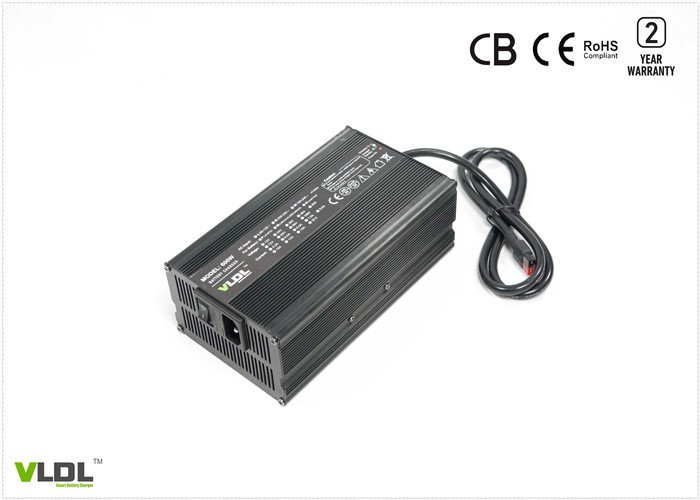

14V 25A Battery Charger

14V 25A Battery Charger

VLDL 14V 25A Battery Charger is designed for Lithium or AGM batteries.

We customize charging voltage by battery types: max 14.4V 25A charging for 12V AGM batteries and max 16.8V or 18.2V or 18.25V for Lithium batteries. What ever charging voltage you need, we will set for you and largely suit for your expensive batteries. By our customization, VLDL battery charger's smart and automatic pre-charge, CC(contant current), CV(constant voltage) charging steps will charge your battery with the fastest speed but the most saft way.

This 14V 25A battery charger has worldwide input voltage, range is from 90V to 264V, that mean you can connect it to the AC socket around the world. Charger can swith automatically between 110V and 230V, no any worry about wrong voltage connection.

As a beatifual aluminum casing charger, it only have 2.5 kg light weight and portable for EV applications. We guaratee fully two years warranty for our high quality chargers and have confidence to provide free replacing charger to our customer if there is fualt charger in two years.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.
