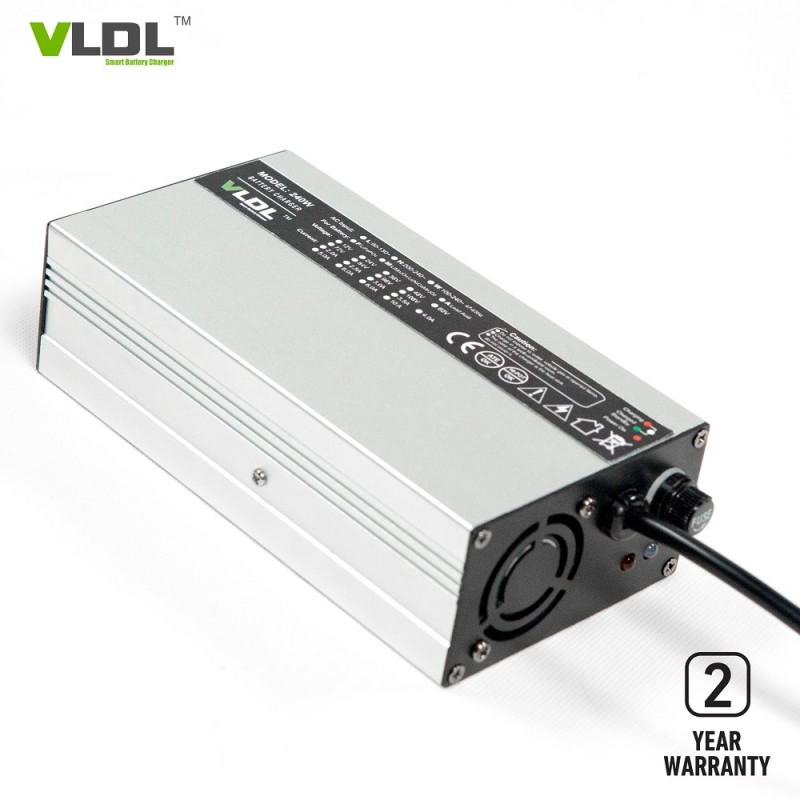

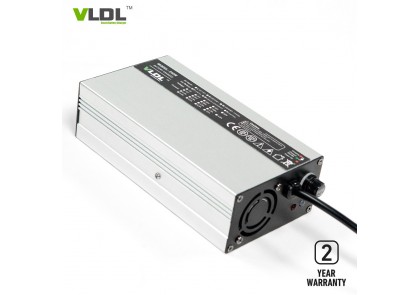

14V 10A Battery Charger

Lithium Battery Charger 12V 14V 10A, Automatic Charging, 90~264Vac Input

Brief Description:
PFC 12V 10Amps intelligent battery charger is designed for lithium or lead acid battery, input with worldwide 110 to 230Vac PFC and rated output voltatge is 12 Volt 10 amps. Smart max charging voltage is 14.7V for lead acid type batteries and 14.6V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.

Technical Specs.:

1) Dimensions(LxWxH): 190 x 90 x 50 mm

2) Net weight: 1.0 KG

3) Max charging voltage(CV): 14 / 14.4 / 14.6 / 14.7 volt

4) Floating voltage: custom-made

5) Max output current (CC): 10 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 230Vac with PFC

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user's country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac(90 ~ 264Vac) with PFC, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Certifications:
