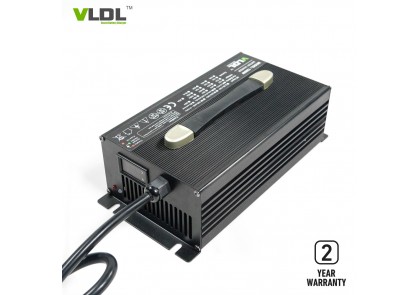

14.6V 60A LiFePO4 Battery Charger
Item No.: UY1500-1260
Size: 300 x 150 x 90 mm
Net weight: 4.5 KG
Case: Aluminum black or silver
AC input voltage: 110 or 230Vac
AC input freq.: 50 / 60 Hz
Output-rated: 12V, 60A
Output-max: 14.6Vdc
Charging method: Automatic CC, CV
Warranty: 2 Years
- Product Details

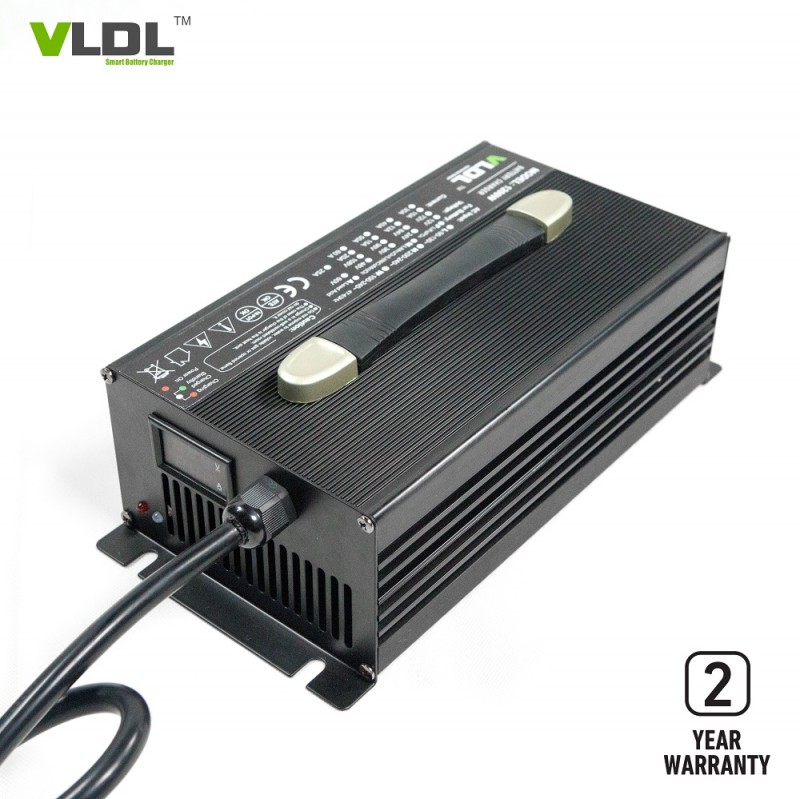

14.6V 12V 60A LiFePO4 Battery Charger
Brief Descriptions:
12V 60A smart battery charger is designed for lithium or lead acid (AGM, sealed) battery powered electric cars, golf carts, input 110 or 230Vac and rated output voltage is 12V 60A. Smart max charging voltage is 14.6Vdc for 12V LiFePO4 battery pack. MCU controlled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric vehicles very fast, with high efficiency and protect your battery life maximumly. LCD display for charging voltage, current, capacity rate, error, etc.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
AC input 110V or 230V, 50Hz ~ 60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.
2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 85%.
Forced ventilation with fans.

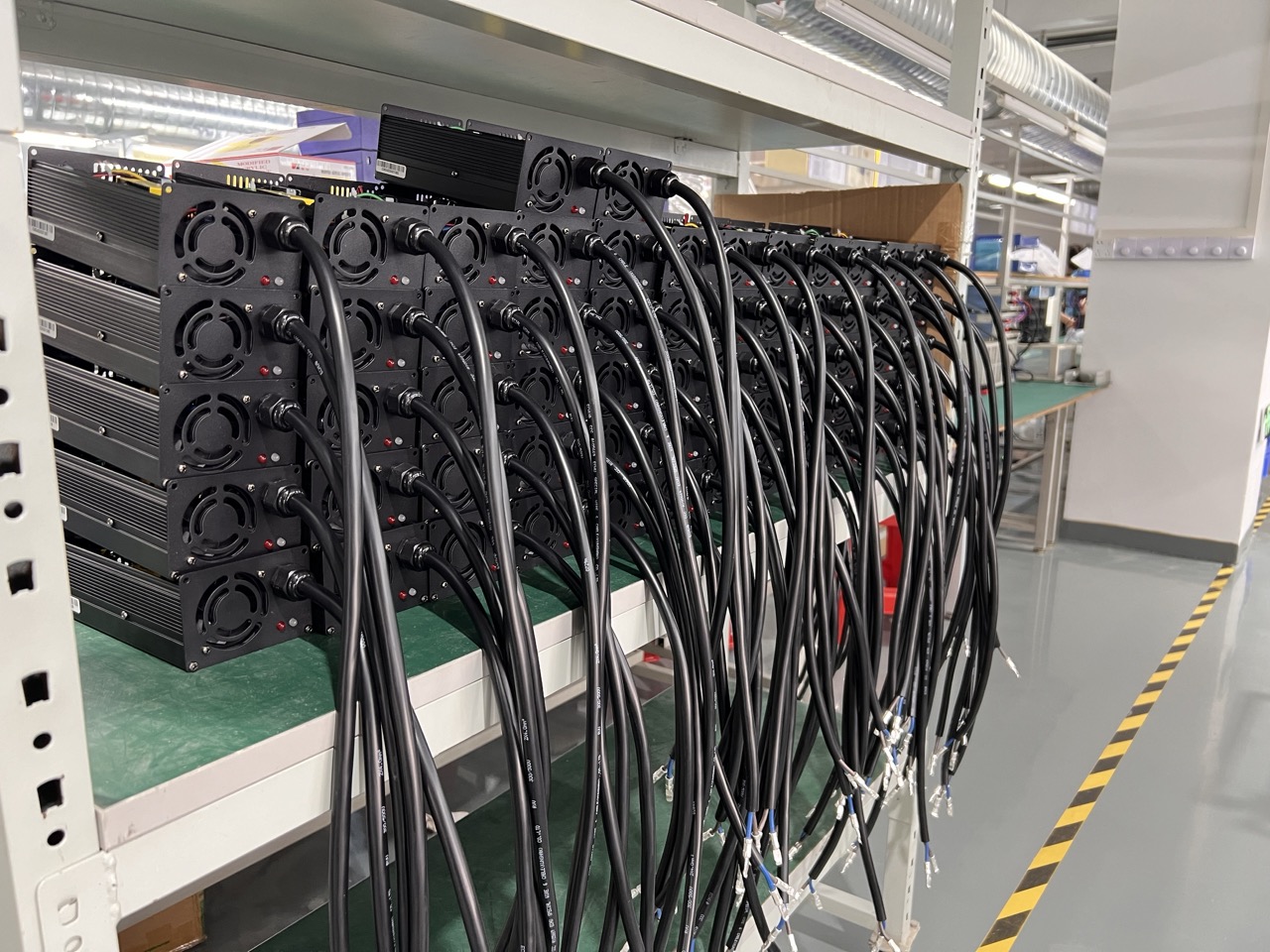

100% full load burn-in test.
Aluminum casing, light weight, portable, on-board.
Technical Specs.:
Dimensions(LxWxH): 300 × 150 × 90 MM
Net weight: 4.5 KG
Max charging voltage(CV): 14.6Vdc
Max output current (CC): 60 amps
Charging method: pre-charge, CC, CV, floating / trickle or shut off
AC input voltage: 110 or 230Vac
8) AC input freq.: 50 / 60 Hz
AC plug: US, UK, Euro, AU etc.
Output connector type: Clips, Ring terminals, Anderson etc.
Enclosure: Aluminum
| Output series: 1,500W Size: 300×150×90 mm Net weight: 4.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1260L | 12V LiFePO4 Battery |
|
14.6V | 60A | CC5~8% |
| VL1260 | 12V Lead-acid Battery | 13.5V | 14.7V | 60A | CC20% | |
| VL1460 | 14V AGM Battery | 13.5V | 14.4V | 60A | CC20% | |
| VL1660L | 16V LiFePO4 Battery |
|
18.2V | 60A | CC5~8% | |
| VL2445LM | 24V Li-MnO2 Battery |
|
29.4V | 45A | CC5~8% | |
| VL2445L | 24V LiFePO4 Battery |
|
29.2V | 45A | CC5~8% | |
| VL2445 | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | |
| VL3630LM | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | |
| VL3630L | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL3630 | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | |
| VL4825LM | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | |
| VL4825L | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | |
| VL4825 | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | |
| VL6020L | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | |
| VL6020 | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | |
| VL7215L | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | |
| VL7215 | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | |
|
|
VL8413L | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% |
|
|
VL8413 | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% |
|
|
||||||
| Note: customized input / output / plug type / connectors are available. | ||||||
