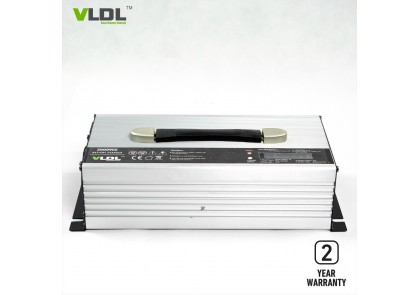

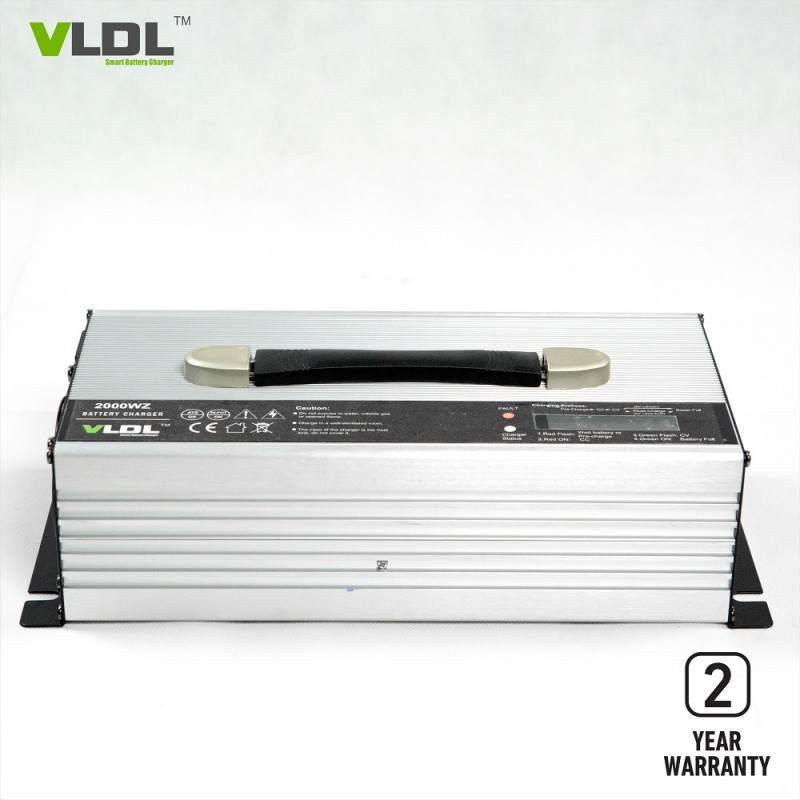

14.4V(12V) 100A AGM Battery Charger

12V 14.4V 100A AGM Battery Charger

Brief Description:

12V 100A smart battery charger, input with 110 / 230Vac and rated output voltatge is 12V 100A. Smart max charging voltage is 14.4 / 14.7V for SLA type batteries or AGM batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.

Features

Optional charging methods: 12V AGM batteries.

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Single Input 110Vac or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic 3 steps charge: CC, CV, floating/trickle or shut-off.

Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

100% full load burn-in test.

2 years warranty.

Technical Specs.:

Dimensions(LxWxH): 380 x 150 x 90 mm

Net weight: 6.5 KG

Max charging voltage(CV): 14.4 / 14.7 volt

Floating voltage: 13.2V

Max output current (CC): 100 amps

Charging method: CC, CV, floating / trickle or shut off

AC input voltage: 110 or 230Vac

AC input freq.: 50 / 60 Hz

AC plug: customized by user’s country

Output connector type: customized by applications

Enclosure: Aluminum

Output series: 2,000W      Size: 380×150×90 mm      Net weight: 6.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL12100L	12V LiFePO4 Battery		14.6V	100A	CC5~8%
	VL12100	12V Lead-acid Battery	13.5V	14.7V	100A	CC20%
	VL14100	14V AGM Battery	13.5V	14.4V	100A	CC20%
	VL16100L	16V LiFePO4 Battery		18.2V	100A	CC5~8%
	VL2460LM	24V Li-MnO2 Battery		29.4V	60A	CC5~8%
	VL2460L	24V LiFePO4 Battery		29.2V	60A	CC5~8%
	VL2460	24V Lead-acid Battery	27.6V	29.4V	60A	CC20%
	VL3640LM	36V Li-MnO2 Battery		42V	40A	CC5~8%
	VL3640L	36V LiFePO4 Battery		43.8V	40A	CC5~8%
	VL3640	36V Lead-acid Battery	41.4V	44.1V	40A	CC20%
	VL4830LM	48V Li-MnO2 Battery		54.6V	30A	CC5~8%
	VL4830L	48V LiFePO4 Battery		43.8V	30A	CC5~8%
	VL4830	48V Lead-acid Battery	55.2V	58.8V	30A	CC20%
	VL6025L	60V LiFePO4 Battery		73V	25A	CC5~8%
	VL6025	60V Lead-acid Battery	67.5V	73.5V	25A	CC20%
	VL7220L	72V LiFePO4 Battery		87.6V	20A	CC5~8%
	VL7220	72V Lead-acid Battery	81V	88.2V	20A	CC20%
	VL8418L	84V LiFePO4 Battery		102.2V	18A	CC5~8%
	VL8418	84V Lead-acid Battery	94.5V	102.9V	18A	CC20%
	VL9616L	96V LiFePO4 Battery		116.8V	16A	CC5~8%
	VL9616	96V Lead-acid Battery	108V	117.6V	16A	CC20%
Note: customized input / output / plug type / connectors are available.

FAQ

Q. Are you a factory or trading company?

A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.

Q. What's about the warranty for Danl battery chargers?

Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.

Q. Do you accept OEM order?

A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.

Q. What is about the lead time for an order?

A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.

Q. What certification do you have?

A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.

Q. Why choose your smart battery chargers?

A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
