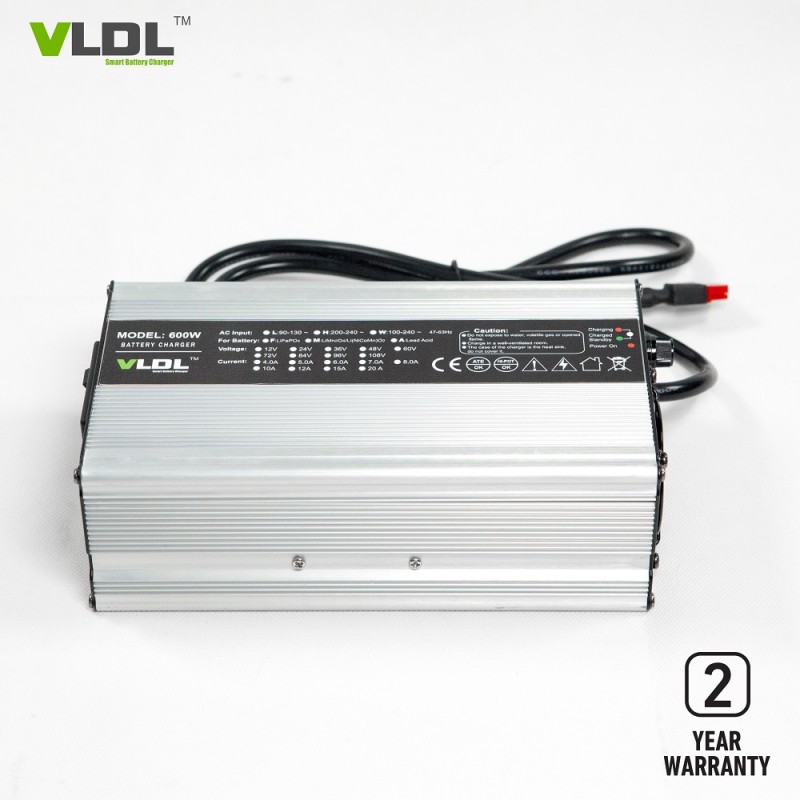

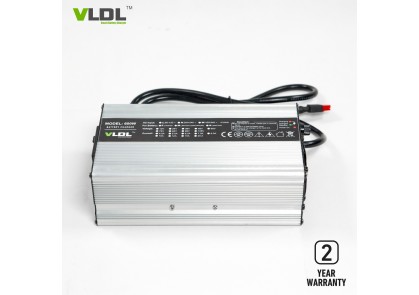

14.4V 40A lead acid battery charger

Smart 12V 14.4V 40A lead acid battery charger

Brief Description:

Lead acid battery charger 12 volts 40 amps, input with AC 110 / 230Vac and rated output voltatge is DC 12V 40A. Smart max charging voltage is 14.4V for SLA, AGM, GEL type batteries. Intelligent 4 stages charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 230 x 135 x 70 mm

2) Net weight: 3.0 KG

3) Max charging voltage(CV): 14.4 / 14.6 volts

4) Floating voltage: /

5) Max output current (CC): 40 amps

6) Charging method: Automatic CC, CV, float

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features

1) Optional charging methods: Lithium or SLA / AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating / trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

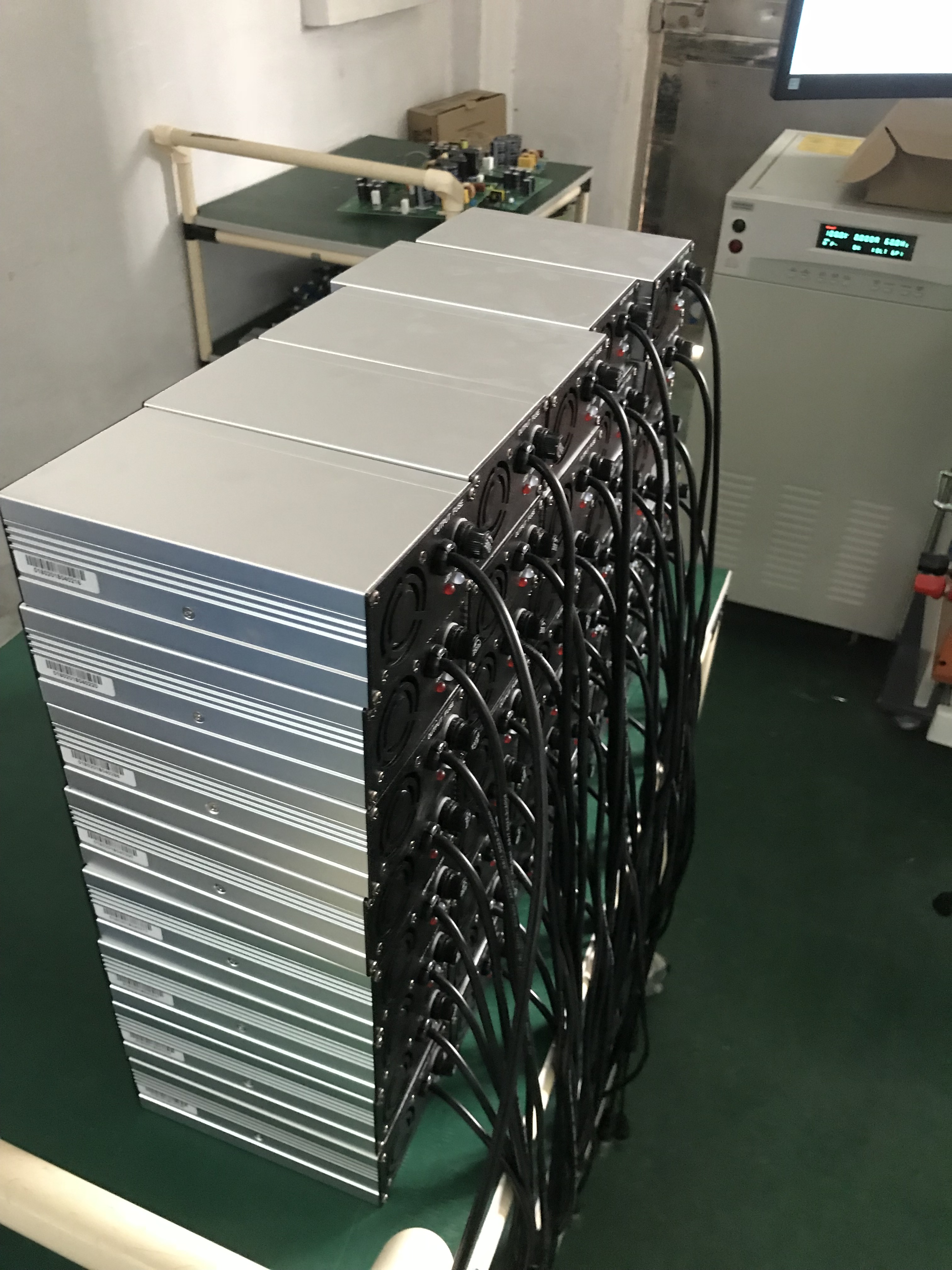

9) 100% full load burn-in test.

10) 2 years warranty.

Output series: 900W      Size: 230×135×70 mm     Net weight: 3.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1240L	12V LiFePO4 Battery		14.6V	40A	CC5~8%
	VL1240	12V Lead-acid Battery	13.5V	14.7V	40A	CC20%
	VL1440	14V AGM Battery	13.5V	14.4V	40A	CC20%
	VL1640L	16V LiFePO4 Battery		18.2V	40A	CC5~8%
	VL2425LM	24V Li-MnO2 Battery		29.4V	25A	CC5~8%
	VL2425L	24V LiFePO4 Battery		29.2V	25A	CC5~8%
	VL2425	24V Lead-acid Battery	27.6V	29.4V	25A	CC20%
	VL3618LM	36V Li-MnO2 Battery		42V	18A	CC5~8%
	VL3618L	36V LiFePO4 Battery		43.8V	18A	CC5~8%
	VL3618	36V Lead-acid Battery	41.4V	44.1V	18A	CC20%
	VL4815LM	48V Li-MnO2 Battery		54.6V	15A	CC5~8%
	VL4815L	48V LiFePO4 Battery		43.8V	15A	CC5~8%
	VL4815	48V Lead-acid Battery	55.2V	58.8V	15A	CC20%
	VL6012L	60V LiFePO4 Battery		73V	12A	CC5~8%
	VL6012	60V Lead-acid Battery	67.5V	73.5V	12A	CC20%
	VL7210L	72V LiFePO4 Battery		87.6V	10A	CC5~8%
	VL7210	72V Lead-acid Battery	81V	88.2V	10A	CC20%
	VL8408L	84V LiFePO4 Battery		102.2V	8A	CC5~8%
	VL8408	84V Lead-acid Battery	94.5V	102.9V	8A	CC20%
Note: customized input / output / plug type / connectors are available.

Battery Knowledge

Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.

Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?

A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.

Battery Charger Knowledge

Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.

Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
