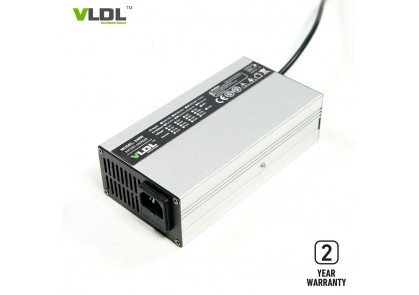

12V 10A Lithium Battery Charger

China 12V 10A Lithium Battery Charger, high quality battery charger manufacturer and factory.

Input 110/230Vac, max 14.4V or 14.6V 10Amps smart charging: pre-charging, CC, CV and Cut-off

Portable 12V 10A Smart Lithium Battery Charger High Efficiency For Li Battery

12V 10Amps intelligent battery charger is designed for lithium or lead acid battery, input with worldwide 110 to 230Vac and rated output voltatge is 12 Volt 10 amps. Smart max charging voltage is 14.7V for lead acid type batteries and 14.6V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Output series: 240W      Size: 170×90×50 mm      Net weight: 1.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 85~264V Frequency: 47~63HZ	VL1210L	12V LiFePO4 Battery		14.6V	10A	CC5~8%
	VL1210	12V Lead-acid Battery	13.5V	14.7V	10A	CC20%
	VL2407LM	24V Li-MnO2 Battery		29.4V	7A	CC5~8%
	VL2407L	24V LiFePO4 Battery		29.2V	7A	CC5~8%
	VL2407	24V Lead-acid Battery	27.6V	29.4V	7A	CC20%
	VL3605LM	36V Li-MnO2 Battery		42V	5A	CC5~8%
	VL3605L	36V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL3605	36V Lead-acid Battery	41.4V	44.1V	5A	CC20%
	VL4804LM	48V Li-MnO2 Battery		54.6V	4A	CC5~8%
	VL4804L	48V LiFePO4 Battery		43.8V	4A	CC5~8%
	VL4804	48V Lead-acid Battery	55.2V	58.8V	4A	CC20%
	VL6003L	60V LiFePO4 Battery		73V	3A	CC5~8%
	VL6003	60V Lead-acid Battery	67.5V	73.5V	3A	CC20%
	VL72025L	72V LiFePO4 Battery		87.6V	2.5A	CC5~8%
	VL72025	72V Lead-acid Battery	81V	88.2V	2.5A	CC20%
Note: customized input / output / plug type / connectors are available.

This is a SMPS technology smart 12V 10A Lithium Battery Charger. It is designed for charging 12V (4S cells) lithium battery pack with soft start / pre-charge, CC, CV and automatic cut-off, four steps method.

It have universal input voltage 110-230 Vac, automatic switching between 110V or 230V, just plug in and then charging. Max charging voltage can be set at 14.4V or 14.6V by your battery types. 10 Amps fast charging current and charge your 40~60Ah lithium battery in 4 to 6 hours.

Why choose a SMPS (switching mode power supply) technology battery charger? Because it has small size comparing with conventional chargers and smart charging steps to protect expensive battery. This 12V10A charger only has 1KG and dimensions is 170*90*50mm with good looking aluminum housing, color could be black or silver, light and portable.

Danl New Energy Co., LTD, as an original manufacturer of battery charger, we have more than 10 years manufacturing and exporting experience. Most of our chargers are sold to Euro countries and North American market. High quality and best after service have gained much reputation for DANL in this industry.
