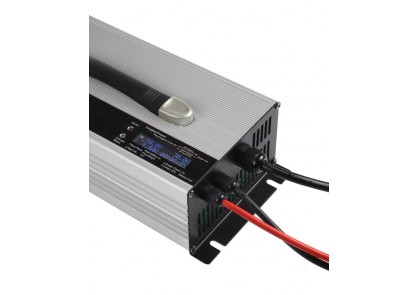

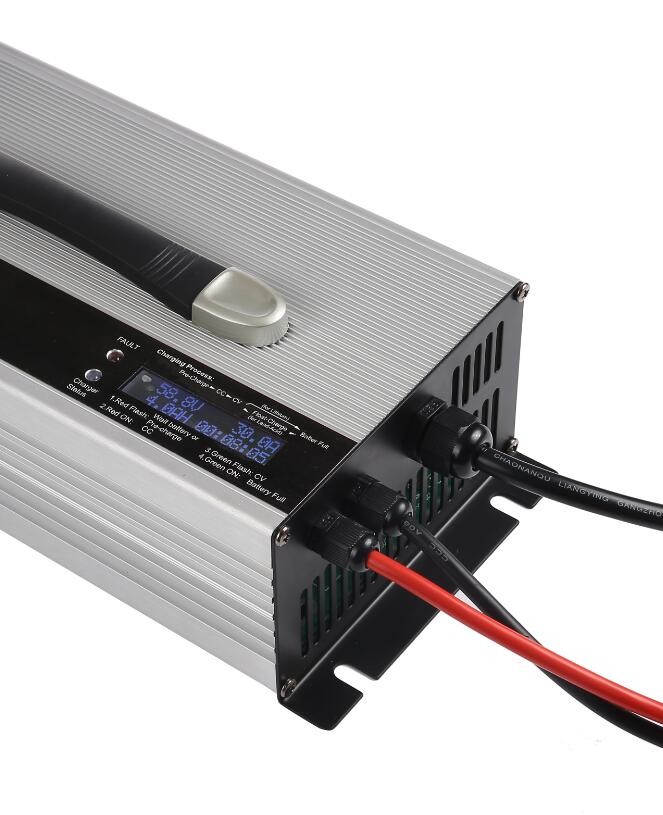

12V 90A Li-ion Battery Charger (220Vac input)
Item No.: VL1290L
Size: 380 x 150 x 90 mm
Net weight: 6.0 KG
Case: Aluminum
AC input voltage: 220Vac
AC input freq.: 50 / 60 Hz
Output-rated: 12V 90A
Output-max: 14.4V / 14.6V 90A
Charging method: Automatic CC, CV
Warranty: 2 Years
- Product Details
12V 90A Lithium ion Battery Charger (220Vac input)
Brief Description:
12V 90A lithium ion battery charger, input with single 220Vac and rated output voltatge is 12V 90A. Smart max charging voltage is 14.4 / 14.6V for Li-ion, LiFePO4, LiMnO2 batteries. Intelligent 4 steps charging with pre-charge, CC, CV or Cut-off, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
Optional charging methods: Lithium or AGM batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 220Vac(180~264Vac), 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 380 x 150 x 90 mm
Net weight: 6.0 KG
Max charging voltage(CV): 14.4 / 14.6 volt
Max output current (CC): 90 amps
Charging method: automatic CC, CV and Cut-off
AC input voltage: single 220Vac
AC input freq.: 50 / 60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
| Output series: 2,000W Size: 380×150×90 mm Net weight: 6.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1290L | 12V LiFePO4 Battery |
|
14.6V | 90A | CC5~8% |
| VL1290 | 12V Lead-acid Battery | 13.5V | 14.7V | 90A | CC20% | |
| VL1490 | 14V AGM Battery | 13.5V | 14.4V | 90A | CC20% | |
| VL1690L | 16V LiFePO4 Battery |
|
18.2V | 90A | CC5~8% | |
| VL2460LM | 24V Li-MnO2 Battery |
|
29.4V | 60A | CC5~8% | |
| VL2460L | 24V LiFePO4 Battery |
|
29.2V | 60A | CC5~8% | |
| VL2460 | 24V Lead-acid Battery | 27.6V | 29.4V | 60A | CC20% | |
| VL3640LM | 36V Li-MnO2 Battery |
|
42V | 40A | CC5~8% | |
| VL3640L | 36V LiFePO4 Battery |
|
43.8V | 40A | CC5~8% | |
| VL3640 | 36V Lead-acid Battery | 41.4V | 44.1V | 40A | CC20% | |
| VL4830LM | 48V Li-MnO2 Battery |
|
54.6V | 30A | CC5~8% | |
| VL4830L | 48V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL4830 | 48V Lead-acid Battery | 55.2V | 58.8V | 30A | CC20% | |
| VL6025L | 60V LiFePO4 Battery |
|
73V | 25A | CC5~8% | |
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7220L | 72V LiFePO4 Battery |
|
87.6V | 20A | CC5~8% | |
| VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
| VL8418L | 84V LiFePO4 Battery |
|
102.2V | 18A | CC5~8% | |
| VL8418 | 84V Lead-acid Battery | 94.5V | 102.9V | 18A | CC20% | |
| VL9616L | 96V LiFePO4 Battery |
|
116.8V | 16A | CC5~8% | |
| VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% | |
|
Note: customized input / output / plug type / connectors are available. |
||||||
