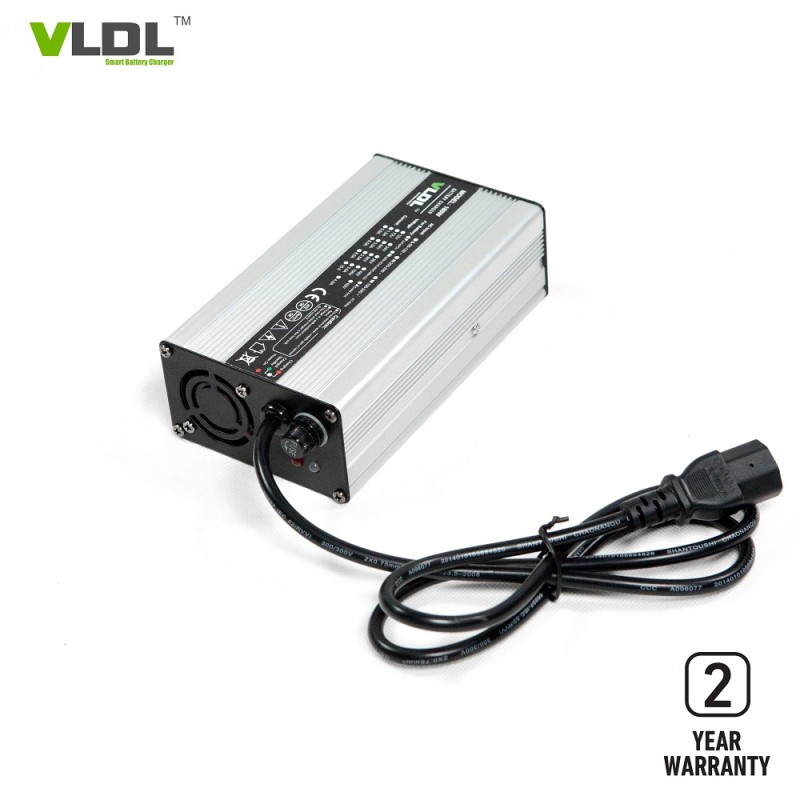

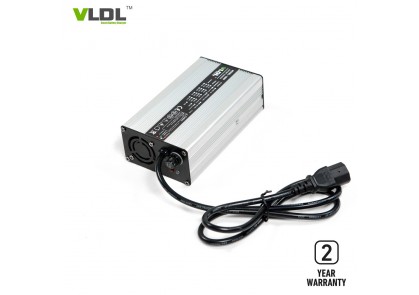

12V 8A Lead Acid Battery Charger
Case material: aluminum
Size: 155 x 90 x 50 mm
Net weight: 1.0 kg
Input voltage: 110 or 230Vac
Rated output: 12V 8A
Max voltage: 14.4V / 14.7V
Charging step: automatic CC, CV, Floating
Applied to battery: 12V SLA / AGM / GEL battery
Warranty: 2 years
- Product Details
12V 8A Lead-acid Battery Charger
Descriptions:
110-230Vac, automatic switching.
12V 8A rated output.
14.4V / 14.7V customized max charging voltage.
Smart CC CV Float charging.
Small size.
Aluminum case.
High reliability with 2 years warranty.
Specifications:
AC input voltage: 110 or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 12V 8Amps
Max charging voltage: customized 14.4V / 14.6V
Dimensions(LxWxH): 155 x 90 x 50 mm
Net weight: 1.0 KG
Housing: Aluminum
Color: Silver or Black
Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Automatic Charging For 12V Lead-acid Batteries.
Suit for E-bikes, E-scooters.
Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
