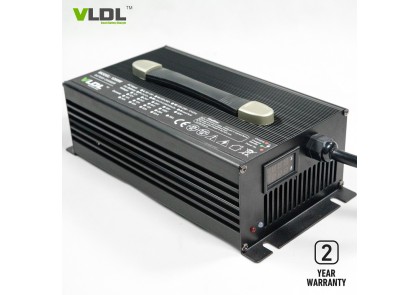

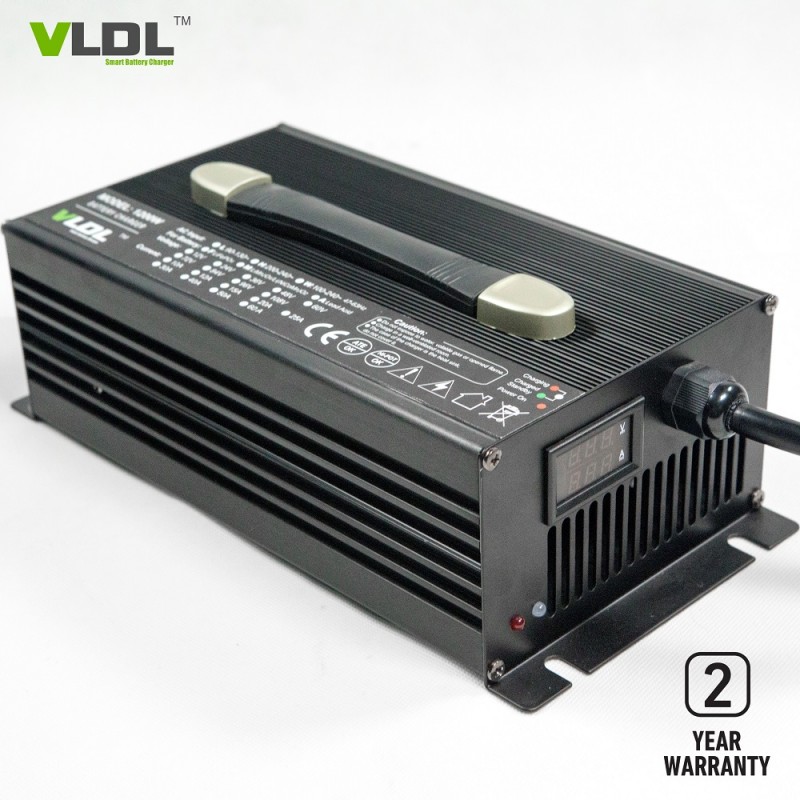

12V 80A NCM Battery Charger
Color Option: Black or Silver
Applied to battery types: 12V NCM Batteries
Charging method: CC, CV or cut-off
Output power series: 1800W
Dimension: 300 x 150 x 90mm
Net weight: 4.5kg
Input voltage: 110 or 230Vac
Max voltage: 14.4/14.6/14.7Vdc customized
Warranty: 2 Years
- Product Details
12V 80A NCM Battery Charger
110V or 230V AC input, customized max 14.4V / 14.6 /14.7Vdc output
Brief Description:
12V 80Amps intelligent lithium ion battery charger is designed for LiFePO4, Li-ion, LiMnO2 battery, input with single 110V or 230Vac and rated output voltage is 12 Volt 80 amps. Smart max charging voltage is 14.7V for lead acid type batteries and 14 / 14.4 / 14.6 / 14.7Vdc for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
AC input 110V or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 88%.
Forced ventilation with fans.

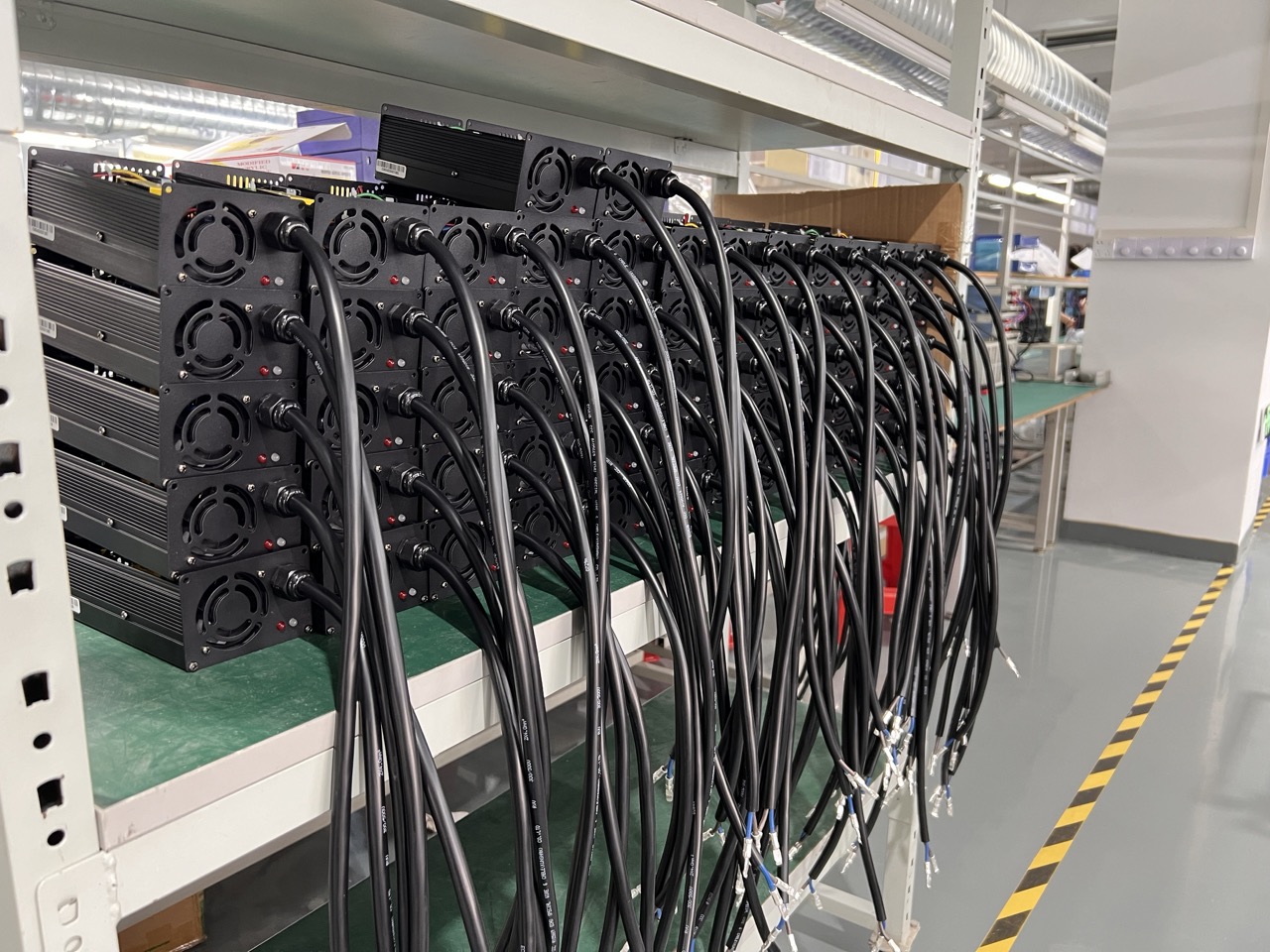

100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
Dimensions(LxWxH): 300 x 150 x 90 mm
Net weight: 4.5 KG
Max charging voltage(CV): 14 / 14.4 / 14.6 / 14.7Vdc
Max output current (CC): 80 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 110 / 230Vac
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
China leading 12V 80A lithium battery charger manufacturer.
High quality, 3 years warranty, factory price.
| Output series: 1,800W Size: 300×150×90 mm Net weight: 4.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1280L | 12V LiFePO4 Battery |
|
14.6V | 80A | CC5~8% |
| VL1280 | 12V Lead-acid Battery | 13.5V | 14.7V | 80A | CC20% | |
| VL1480 | 14V AGM Battery | 13.5V | 14.4V | 80A | CC20% | |
| VL1680L | 16V LiFePO4 Battery |
|
18.2V | 80A | CC5~8% | |
| VL2445LM | 24V Li-MnO2 Battery |
|
29.4V | 45A | CC5~8% | |
| VL2445L | 24V LiFePO4 Battery |
|
29.2V | 45A | CC5~8% | |
| VL2445 | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | |
| VL3630LM | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | |
| VL3630L | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL3630 | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | |
| VL4825LM | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | |
| VL4825L | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | |
| VL4825 | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | |
| VL6020L | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | |
| VL6020 | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | |
| VL7215L | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | |
| VL7215 | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | |
| VL8413L | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% | |
| VL8413 | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | |
| VL9612L | 96V LiFePO4 Battery |
|
116.8V | 12A | CC5~8% | |
| VL9612 | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
