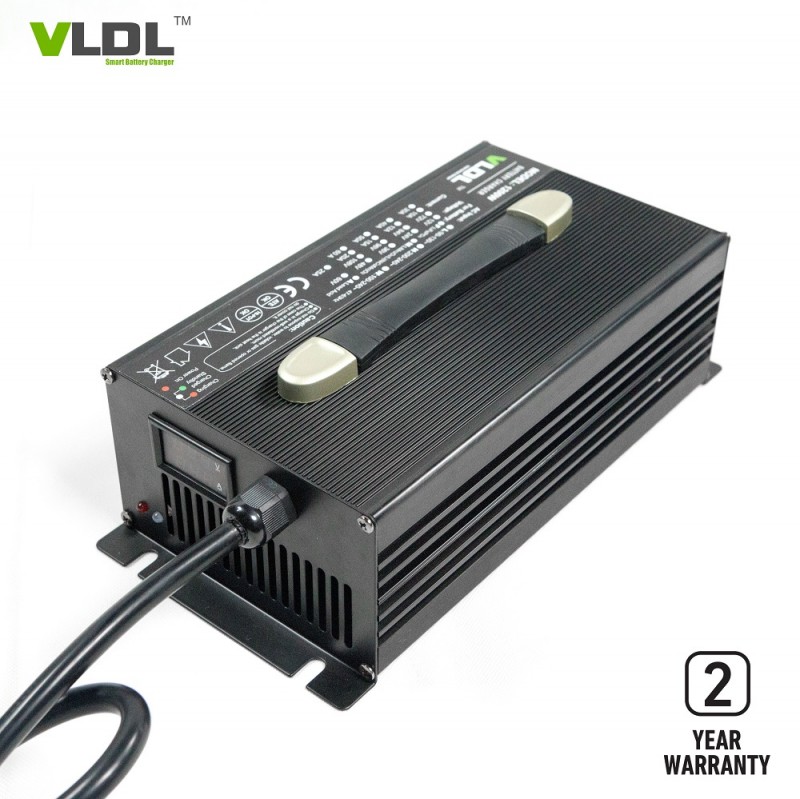

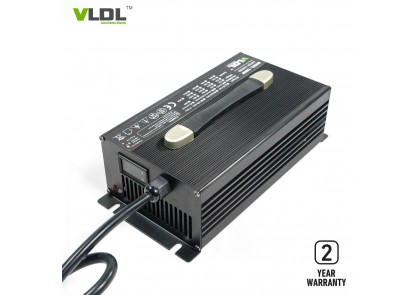

12V 80A Automatic Li-ion Battery Charger

12V 80A Automatic Li-ion Battery Charger

110V or 230V AC input, max 14.4V or 14.6V output

3 years warranty, free replacement, high quality, original manufacturer

Brief Description:

12V 80Amps intelligent lithium ion battery charger is designed for LiFePO4, Li-ion, LiMnO2 battery, input with single 110V or 230Vac and rated output voltage is 12 Volt 80 amps. Smart max charging voltage is 14.7V for lead acid type batteries and 14 / 14.4 / 14.6V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

AC input 110V or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 88%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

Dimensions(LxWxH): 300 x 150 x 90 mm

Net weight: 5.0 KG

Max charging voltage(CV): 14 / 14.4 / 14.6 volts

Max output current (CC): 80 amps

Charging method: CC, CV

AC input voltage: 110 / 230Vac

AC input freq.: 50 / 60 Hz

AC plug: custom-made

Output connector type: customized by applications

Enclosure: Aluminum
