12V 65A Lead Acid Battery Charger
Color Option: Black or Silver
Applied to battery types: 12V SLA Batteries
Charging method: CC, CV and Floating
Output power series: 2000W
Dimension: 330 x 150 x 90 mm
Input voltage: single 110 or 230Vac
Max output: 14.4V / 14.7V
Warranty: 2 Years
- Product Details

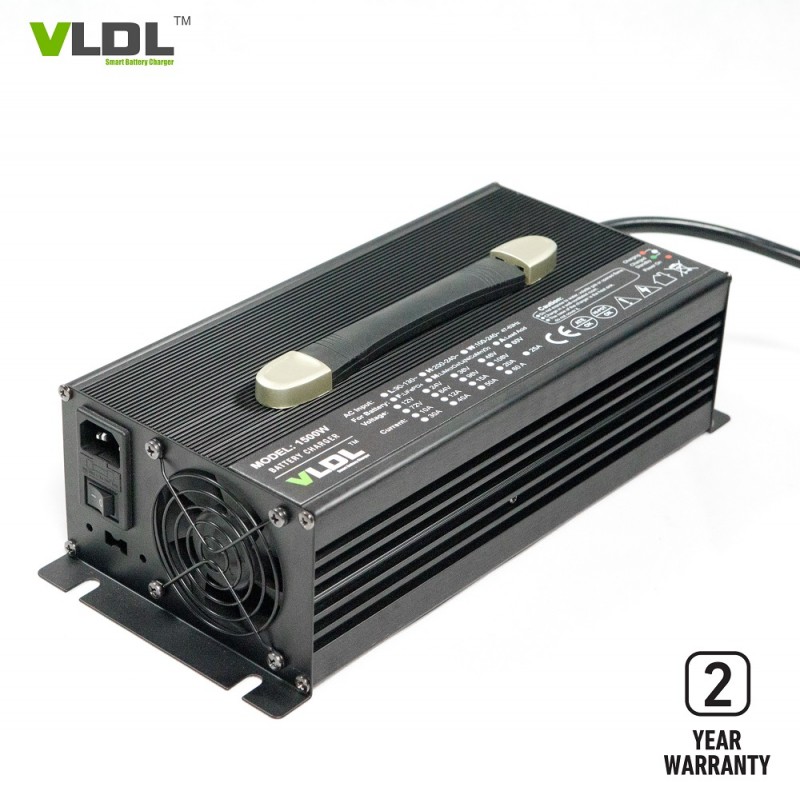

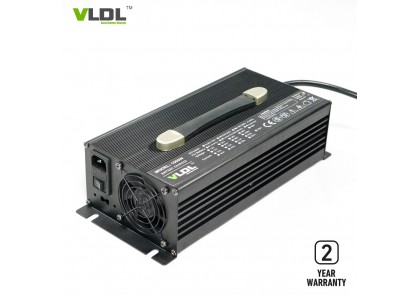

Smart 12V 65A Lead Acid Battery Charger
Brief Description:
12V 65Amps intelligent lead-acid battery charger is designed for 12V SLA, AGM, GLE or other lead acid batteries. Input with single 110V or 230Vac and rated output voltage is 12 Volt 65 amps. Smart max charging voltage is 14.4V or 14.7 for lead acid type batteries. Intelligent 4 steps charging with CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input single 110V or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 88%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
Dimensions(LxWxH): 330 x 150 x 90 mm
Net weight: 5.5 KG
Max charging voltage(CV): 14.4V or 14.7V
Floating voltage: 13.5V
Max output current (CC): 65 amps
Charging method: CC, CV, floating
AC input voltage: 110 / 230Vac
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
| Output series: 2,000W Size: 330×150×90 mm Net weight: 6.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1265L | 12V LiFePO4 Battery | 14.6V | 65A | CC5~8% | |
| VL1265 | 12V Lead-acid Battery | 13.5V | 14.7V | 65A | CC20% | |
| VL1465 | 14V AGM Battery | 13.5V | 14.4V | 65A | CC20% | |
| VL1665L | 16V LiFePO4 Battery | 18.2V | 65A | CC5~8% | ||
| VL2460LM | 24V Li-MnO2 Battery | 29.4V | 60A | CC5~8% | ||
| VL2460L | 24V LiFePO4 Battery | 29.2V | 60A | CC5~8% | ||
| VL2460 | 24V Lead-acid Battery | 27.6V | 29.4V | 60A | CC20% | |
| VL3640LM | 36V Li-MnO2 Battery | 42V | 40A | CC5~8% | ||
| VL3640L | 36V LiFePO4 Battery | 43.8V | 40A | CC5~8% | ||
| VL3640 | 36V Lead-acid Battery | 41.4V | 44.1V | 40A | CC20% | |
| VL4830LM | 48V Li-MnO2 Battery | 54.6V | 30A | CC5~8% | ||
| VL4830L | 48V LiFePO4 Battery | 43.8V | 30A | CC5~8% | ||
| VL4830 | 48V Lead-acid Battery | 55.2V | 58.8V | 30A | CC20% | |
| VL6025L | 60V LiFePO4 Battery | 73V | 25A | CC5~8% | ||
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7220L | 72V LiFePO4 Battery | 87.6V | 20A | CC5~8% | ||
| VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
| VL8418L | 84V LiFePO4 Battery | 102.2V | 18A | CC5~8% | ||
| VL8418 | 84V Lead-acid Battery | 94.5V | 102.9V | 18A | CC20% | |
| VL9616L | 96V LiFePO4 Battery | 116.8V | 16A | CC5~8% | ||
| VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||

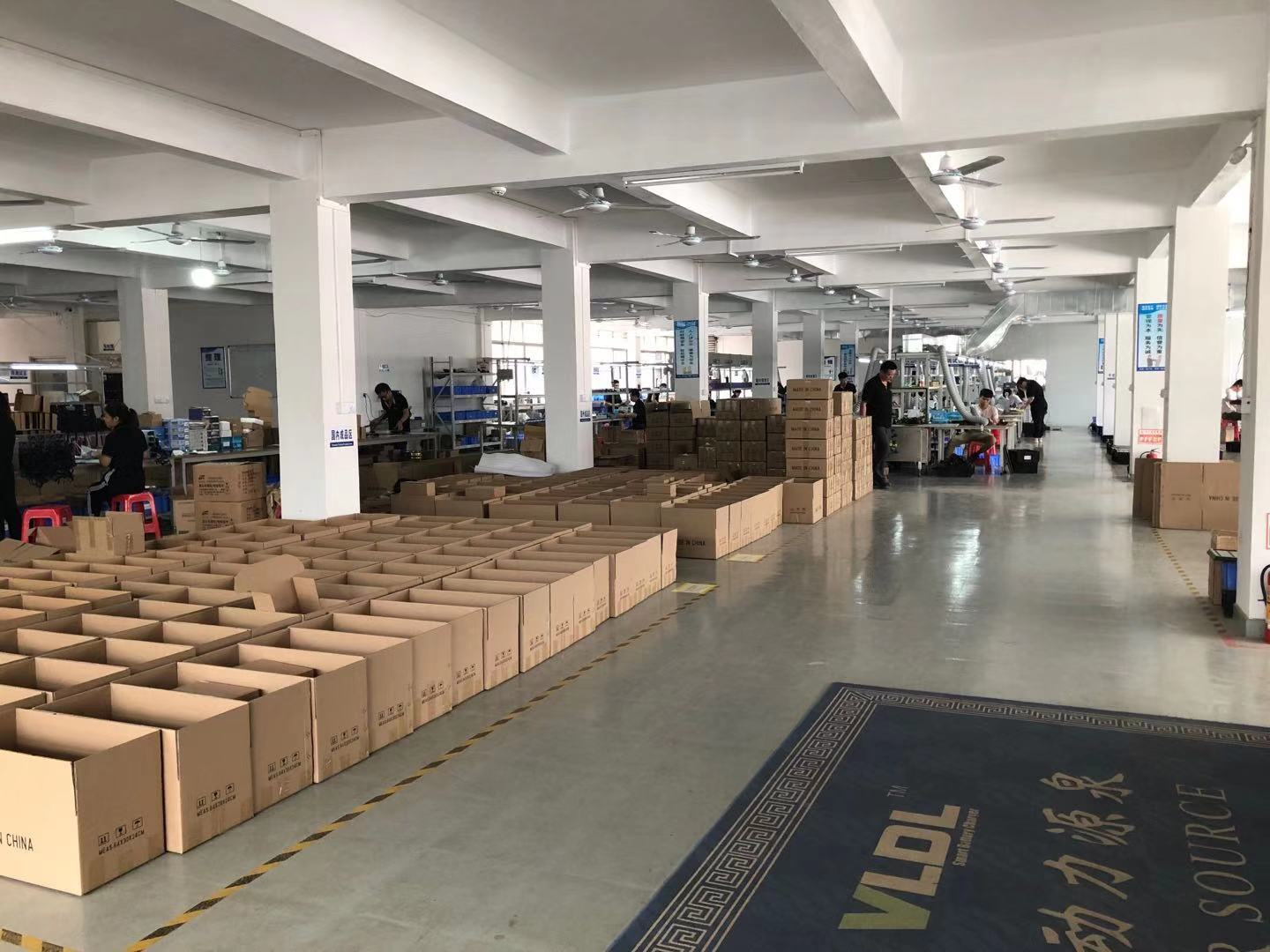

Factory:
