12V 60A LiFePO4 Battery Charger (Manufacturer)

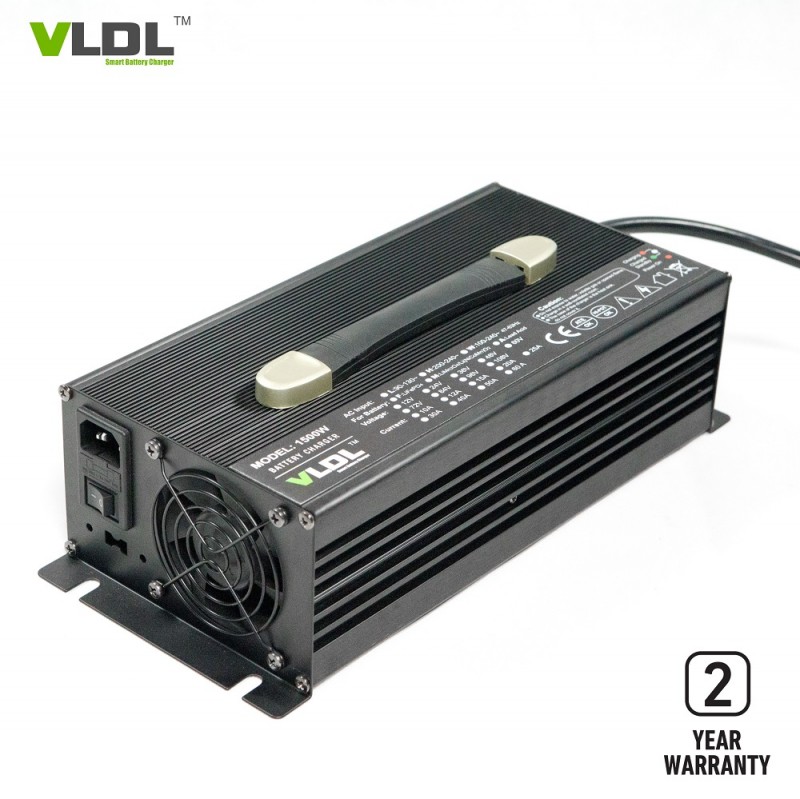

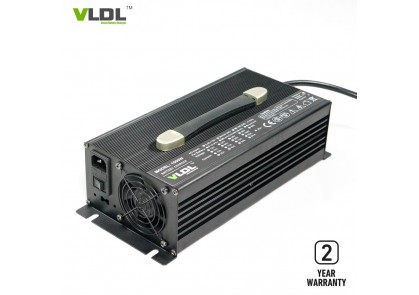

12V 60A Smart LiFeP4 Battery Charger

Brief Descriptions:

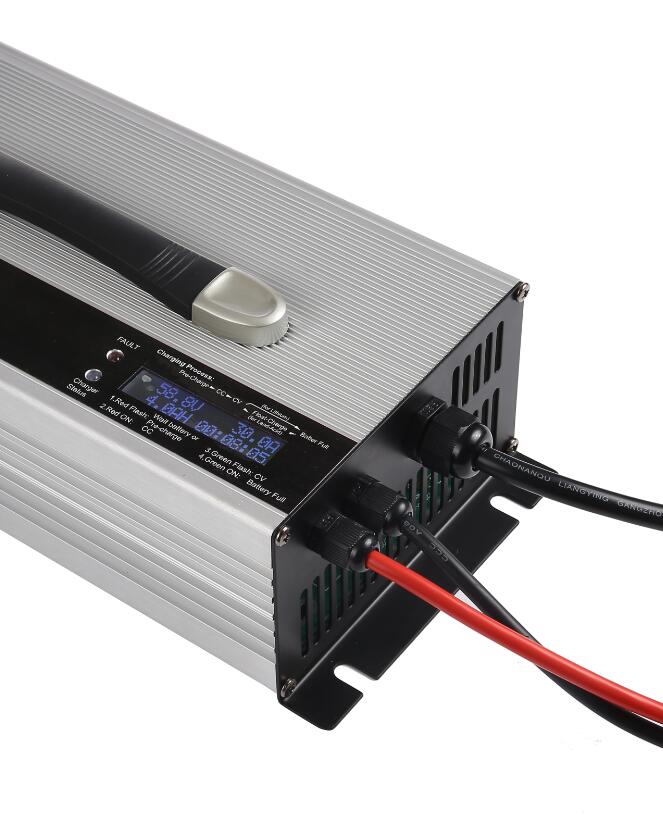

12V 60A smart battery charger is designed for lithium or lead acid (AGM, sealed) battery powered electric cars, golf carts, input 110 or 230Vac and rated output voltage is 12V 60A. Smart max charging voltage is 14.6Vdc for 12V LiFePO4 battery pack. MCU controlled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric vehicles very fast, with high efficiency and protect your battery life maximumly. LCD display for charging voltage, current, capacity rate, error, etc.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

AC input 110V or 230V, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 85%.

Forced ventilation with fans.

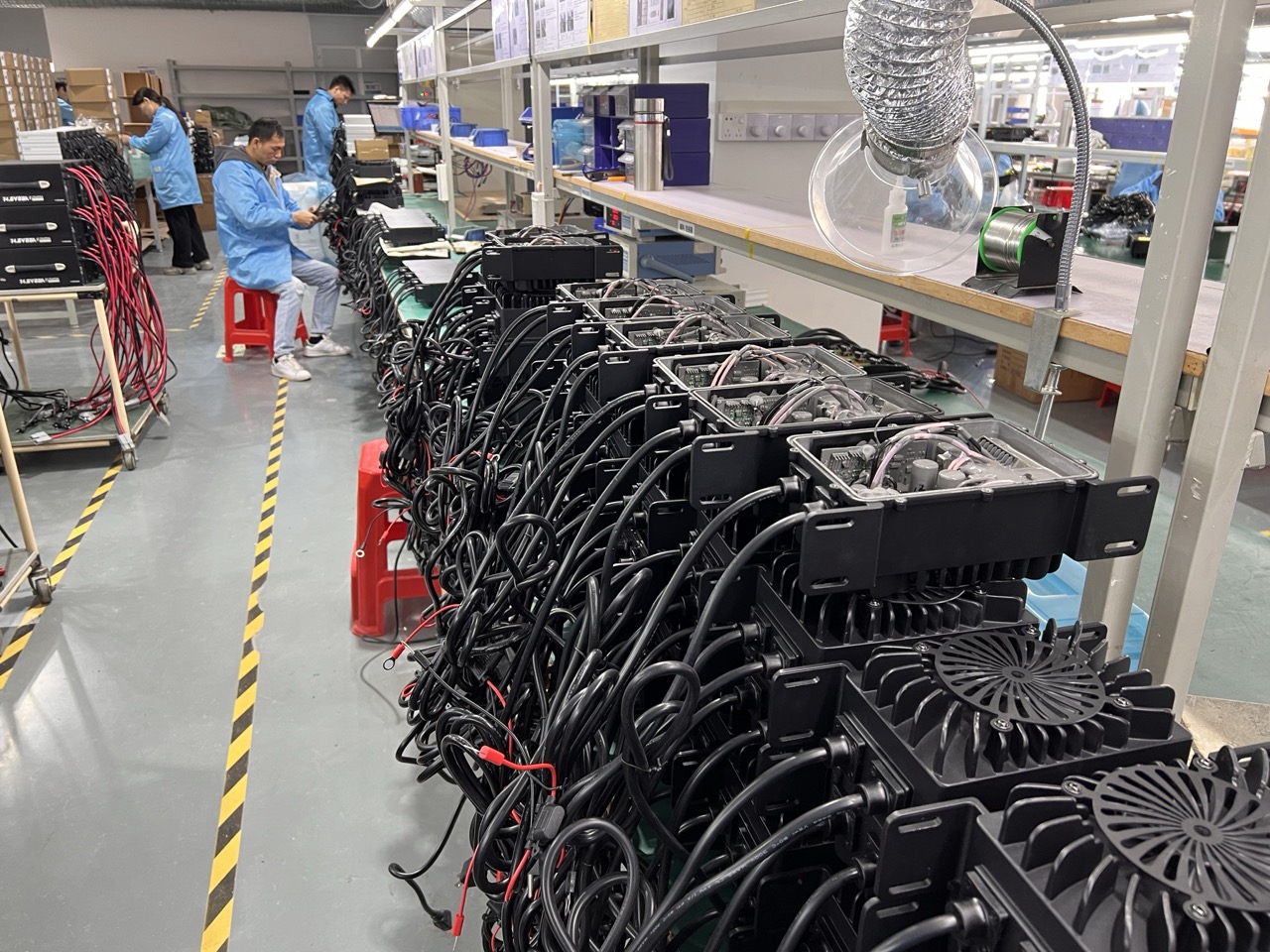

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

Dimensions(LxWxH): 300 × 150 × 90 MM

Net weight: 4.5 KG

Max charging voltage(CV): 14.6Vdc

Max output current (CC): 60 amps

Charging method: pre-charge, CC, CV, floating / trickle or shut off

AC input voltage: 110 or 230Vac

8) AC input freq.: 50 / 60 Hz

AC plug: US, UK, Euro, AU etc.

Output connector type: Clips, Ring terminals, Anderson etc.

Enclosure: Aluminum

Output series: 1,500W      Size: 300×150×90 mm       Net weight: 4.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1260L	12V LiFePO4 Battery		14.6V	60A	CC5~8%
	VL1260	12V Lead-acid Battery	13.5V	14.7V	60A	CC20%
	VL1460	14V AGM Battery	13.5V	14.4V	60A	CC20%
	VL1660L	16V LiFePO4 Battery		18.2V	60A	CC5~8%
	VL2445LM	24V Li-MnO2 Battery		29.4V	45A	CC5~8%
	VL2445L	24V LiFePO4 Battery		29.2V	45A	CC5~8%
	VL2445	24V Lead-acid Battery	27.6V	29.4V	45A	CC20%
	VL3630LM	36V Li-MnO2 Battery		42V	30A	CC5~8%
	VL3630L	36V LiFePO4 Battery		43.8V	30A	CC5~8%
	VL3630	36V Lead-acid Battery	41.4V	44.1V	30A	CC20%
	VL4825LM	48V Li-MnO2 Battery		54.6V	25A	CC5~8%
	VL4825L	48V LiFePO4 Battery		43.8V	25A	CC5~8%
	VL4825	48V Lead-acid Battery	55.2V	58.8V	25A	CC20%
	VL6020L	60V LiFePO4 Battery		73V	20A	CC5~8%
	VL6020	60V Lead-acid Battery	67.5V	73.5V	20A	CC20%
	VL7215L	72V LiFePO4 Battery		87.6V	15A	CC5~8%
	VL7215	72V Lead-acid Battery	81V	88.2V	15A	CC20%
	VL8413L	84V LiFePO4 Battery		102.2V	13A	CC5~8%
	VL8413	84V Lead-acid Battery	94.5V	102.9V	13A	CC20%
Note: customized input / output / plug type / connectors are available.

Battery Knowledge

Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.

Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?

A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.

Battery Charger Knowledge

Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.

Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
