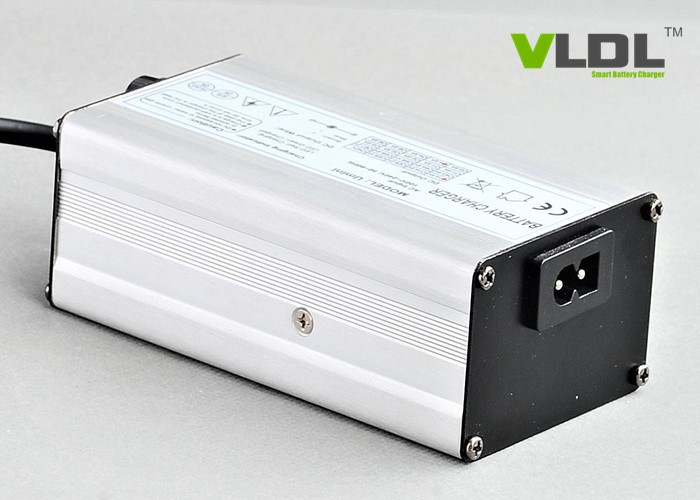

12V 5A Waterproof Battery Charger
Item No.: 1205P
Size: 120 x 69 x 45 mm
Net weight: 1kg
Case: Aluminum
Waterproof rate: IP65
AC input voltage: worldwide 90~264Vac
AC input freq.: 50 / 60 Hz
Output-rated: 12V 5A
Output-max: 13.8V / 14V / 14.4V / 14.6V, 5A
Charging method: CC, CV
Warranty: 2 Years
- Product Details
12V 5A Waterproof Lead-acid Battery Charger with waterproof rate IP65
Brief Descriptions:
12V 5A output smart battery charger.
Universal 90~264Vac input voltage.
14.4V / 14.6V customized max charging voltage for Lithium / lead-acid batteries.
IP65 Sealed Aluminum casing.
Micro-processor controlled and intelligent 4 steps charging.
2 years warranty, high quality.
Technical information:
Item No.: 1205P
Dimension: 120*69*45 mm
Net weight: 1kg
Waterproof rate: IP65
Input voltage: wide 90~264Vac
Output rated: 12Vdc 5Amps
Max charging: customized 14.4V, 14.6V
Applied to battery Types: 12V Lead-acid / Lithium ion Battery
Smart Charging: Auto. CC, CV
| Output series: 120W Size: 120×69×45 mm Net weight: 0.6 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 85~264V
Frequency: 47~63HZ
|
1205LP | 12V LiFePO4 Battery |
|
14.6V | 5A | CC5~8% |
| 1205P | 12V Lead-acid Battery | 13.5V | 14.7V | 5A | CC20% | |
| 2404LMP | 24V Li-MnO2 Battery |
|
29.4V | 4A | CC5~8% | |
| 2404P | 24V Lead-acid Battery | 27.6V | 29.4V | 4A | CC20% | |
| 3603LP | 36V Li-MnO2 Battery |
|
42V | 3A | CC5~8% | |
| 36025LP | 36V Li-MnO2 Battery |
|
42V | 2.5A | CC5~8% | |
| 3602P | 36V Lead-acid Battery | 41.4V | 44.1V | 2A | CC20% | |
| 4802LMP | 48V Li-MnO2 Battery |
|
54.6V | 2A | CC5~8% | |
| 4802P | 48V Lead-acid Battery | 55.2V | 58.8V | 2A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
