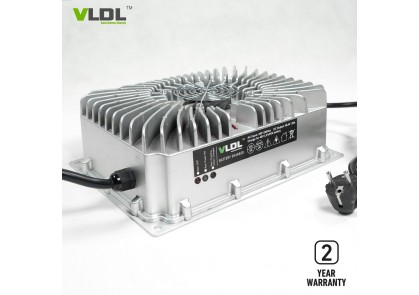

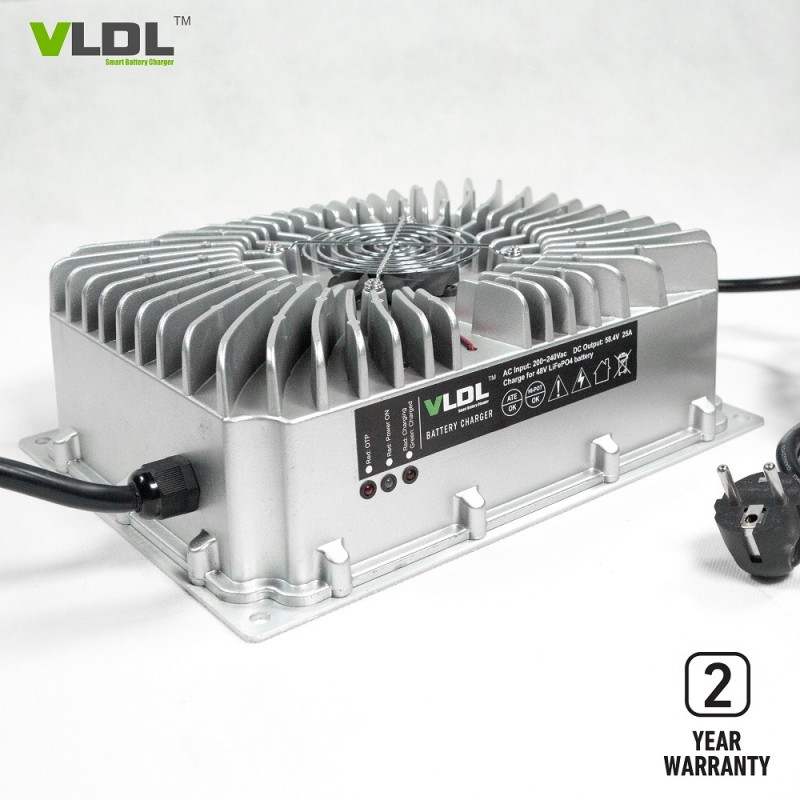

12V 50A Marine Battery Charger

12V 50A Marine Battery Charger, wide 90~264V input, IP65

Brief Descriptions:

Marine Battery Charger 12V50A with IP65 rate waterproof, is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or marine appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 12V 50A. Smart max charging voltage is 14.7V for lead acid (sealed, AGM) type batteries and 14 / 14.4V / 14.6V for LiFePO4 batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

1) Dimensions(LxWxH): 310 × 230 × 101 MM

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 14 / 14.4 / 14.6 / 14.7 volt

4) Floating voltage: /

5) Max output current (CC): 50 amps

6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 90-264 Vac universal

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum

12) Waterproof rate: IP65

1,500W waterproof charger Size: 269×216×98 mm Net weight: 6.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 110 - 230V Frequency: 47~63HZ	VL1280WPL	12V LiFePO4 Battery		14.6V	80A	CC5~8%
	VL1280WP	12V Lead-acid Battery	13.5V	14.7V	80A	CC20%
	VL1480WP	14V AGM Battery	13.5V	14.4V	80A	CC20%
	VL1680WPL	16V LiFePO4 Battery		18.2V	80A	CC5~8%
	VL2445WPLM	24V Li-MnO2 Battery		29.4V	45A	CC5~8%
	VL2445L	24V LiFePO4 Battery		29.2V	45A	CC5~8%
	VL2445	24V Lead-acid Battery	27.6V	29.4V	45A	CC20%
	VL3630WPLM	36V Li-MnO2 Battery		42V	30A	CC5~8%
	VL3630WPL	36V LiFePO4 Battery		43.8V	30A	CC5~8%
	VL3630WP	36V Lead-acid Battery	41.4V	44.1V	30A	CC20%
	VL4825WPLM	48V Li-MnO2 Battery		54.6V	25A	CC5~8%
	VL4825WPL	48V LiFePO4 Battery		43.8V	25A	CC5~8%
	VL4825WP	48V Lead-acid Battery	55.2V	58.8V	25A	CC20%
	VL6020WPL	60V LiFePO4 Battery		73V	20A	CC5~8%
	VL6020WP	60V Lead-acid Battery	67.5V	73.5V	20A	CC20%
	VL7215WPL	72V LiFePO4 Battery		87.6V	15A	CC5~8%
	VL7215WP	72V Lead-acid Battery	81V	88.2V	15A	CC20%
	VL8413WPL	84V LiFePO4 Battery		102.2V	13A	CC5~8%
	VL8413WP	84V Lead-acid Battery	94.5V	102.9V	13A	CC20%
	VL9612WPL	96V LiFePO4 Battery		116.8V	12A	CC5~8%
	VL9612WP	96V Lead-acid Battery	108V	117.6V	12A	CC20%
Note: customized input / output / plug type / connectors are available.
