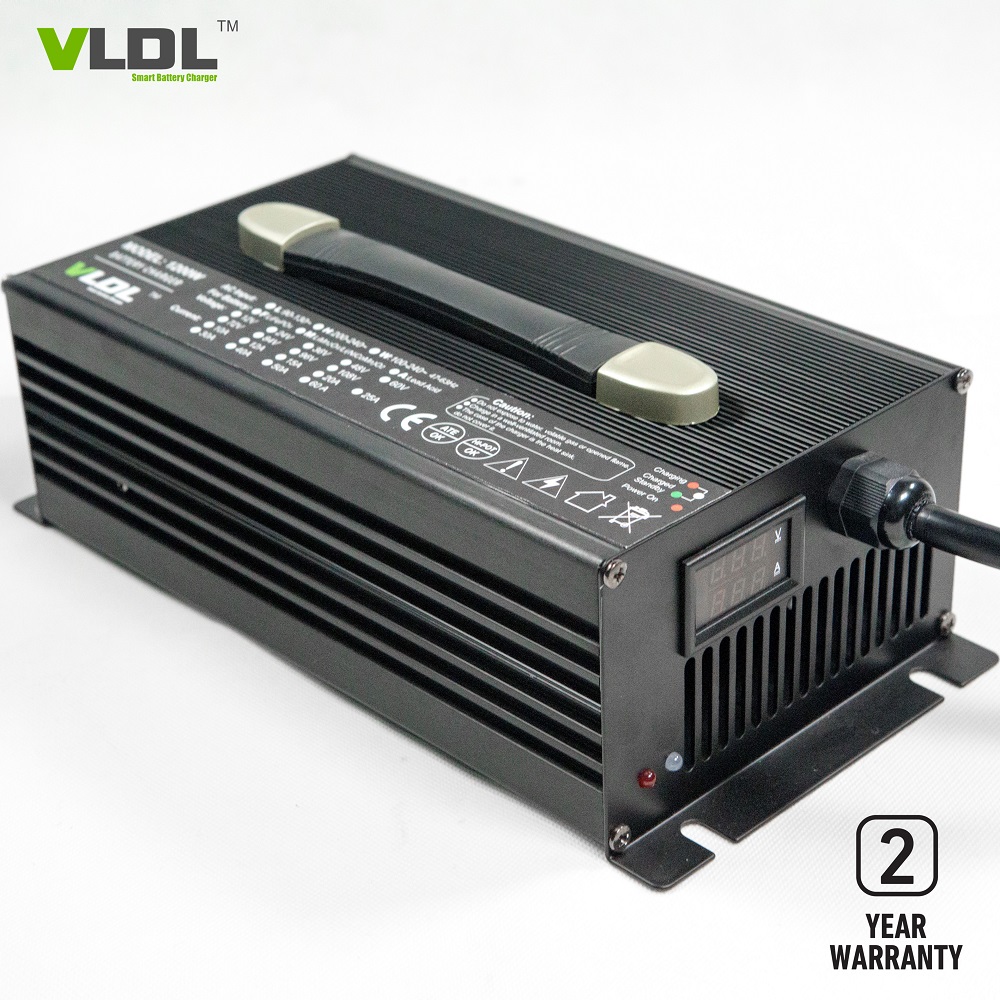

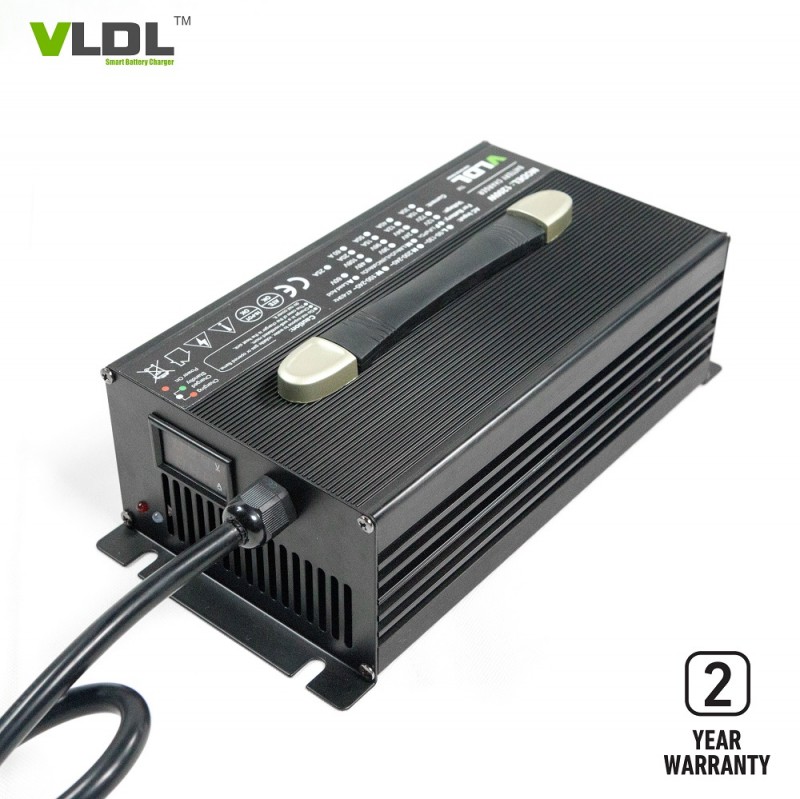

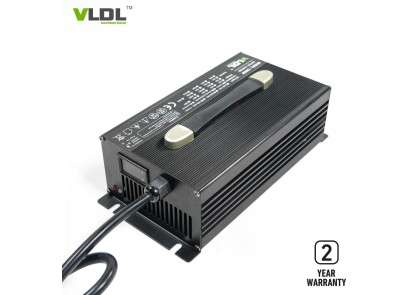

12V 50A AGM Battery Charger

Smart 12V 50A AGM Battery Charger

Brief Description:

AGM battery charger 12 volts 50 amps, input with AC 110 or 230Vac and rated output voltage is DC 12V 50A. Smart max charging voltage is 14V 14.4V or 14.7V for 12V AGM battery. Intelligent 3 stages charging with CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and protect your battery life maximum. High quality, factory price and 2 years warranty.

Features

Optional charging methods: SLA / AGM / GEL batteries.

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110Vac or 230Vac selected, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic 3 steps charge: CC, CV, floating / trickle or shut-off.

Protections: Short-circuit, Over-voltage, Over-temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

100% full load burn-in test.

2 years warranty.

Technical Specs.:

Dimensions(LxWxH): 260 x 150 x 90 mm

Net weight: 5.5 KG

Max charging voltage(CV): 14 / 14.4 / 14.7 volts

Floating voltage: 13.5V

Max output current (CC): 50 amps

Charging method: CC, CV, floating

AC input voltage: 110 or 230Vac

AC input freq.: 50 / 60 Hz

AC plug: US, UK, AU, Euro, etc

Output connector type: Clips, Anderson, bare leads, etc

Enclosure: Aluminum
