12V 4A Lithium Battery Charger
Case: Aluminum
Size: 120 x 69 x 45 mm
Net weight: 0.6 kg
Input voltage: 90-264Vac
Output-rated: 12V, 4A
Output-max: 14V / 14.4V / 14.6V, 2A
Charging method: Pre-charge, CC, CV
Applied to battery types: Li-ion, LiFePO4, LiMnO2
Warranty: 2 Years
- Product Details

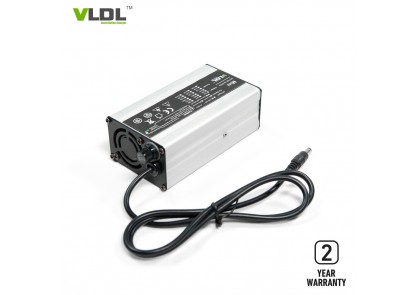

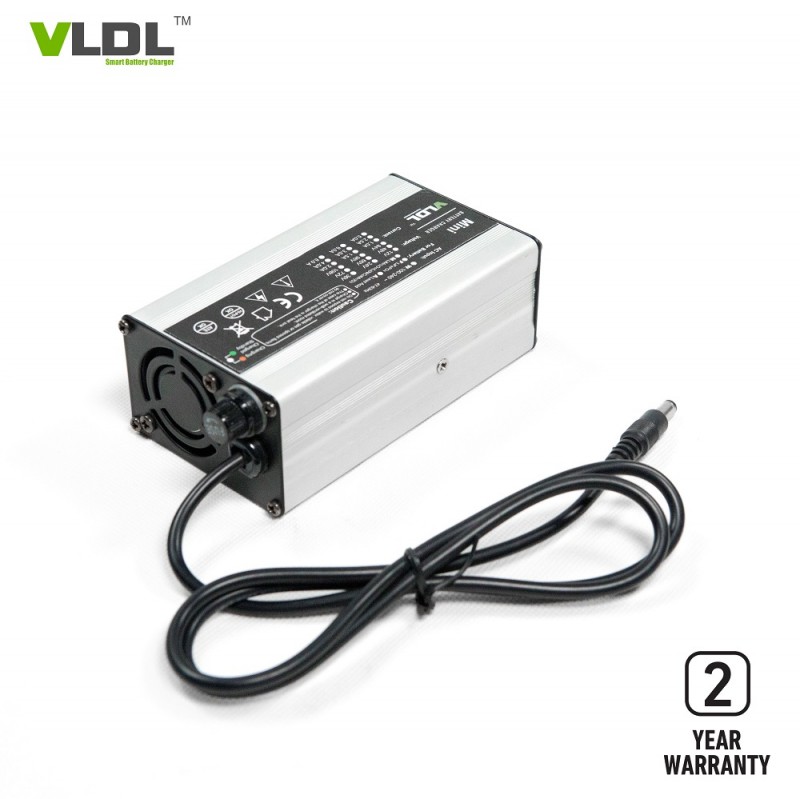

12V 4A Lithium Battery Charger
Descriptions:
Lithium battery charger 12V 4A was designed for Lithium Car Batteries. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 14V or 14.4V or 14.6V for LiFePO4/Li-ion/LiMnO2 battery types. As a 15 years battery charger factory, Danl gurrantees 2 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.
Specifications:
AC input voltage: 90-264Vac
AC input freq.: 50 / 60 Hz
Rated output: 14V 4Amps
Max charging voltage: 14V / 14.4V / 14.6V
Dimensions(LxWxH): 120 x 69 x 45 mm
Net weight: 0.6 KG
Housing: Aluminum
Color: Silver or Black
Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Automatic Charging For 12V LiFePO4 / Li-ion / LiMnO2 Batteries.
Suit for 12V Lithium Car Batteries.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
Related Models of 120W Charger:
Output series: 120W Mini Size: 120×69×45 mm Net weight: 0.6 KG | ||||||
Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1206L | 12V LiFePO4 Battery | 14.6V | 6A | CC5~8% | |
VL1206 | 12V Lead-acid Battery | 13.5V | 14.7V | 6A | CC20% | |
VL2404LM | 24V Li-MnO2 Battery | 29.4V | 4A | CC5~8% | ||
VL2404 | 24V Lead-acid Battery | 27.6V | 29.4V | 4A | CC20% | |
VL3603L | 36V Li-MnO2 Battery | 42V | 3A | CC5~8% | ||
VL3602 | 36V Lead-acid Battery | 41.4V | 44.1V | 2A | CC20% | |
VL4802LM | 48V Li-MnO2 Battery | 54.6V | 2A | CC5~8% | ||
VL4802 | 48V Lead-acid Battery | 55.2V | 58.8V | 2A | CC20% | |
Note: customized input / output / plug type / connectors are available. |
