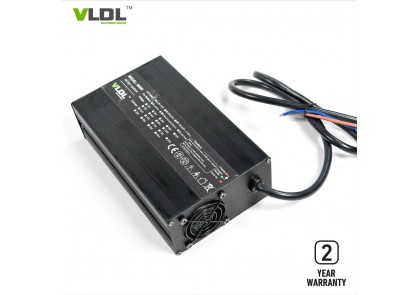

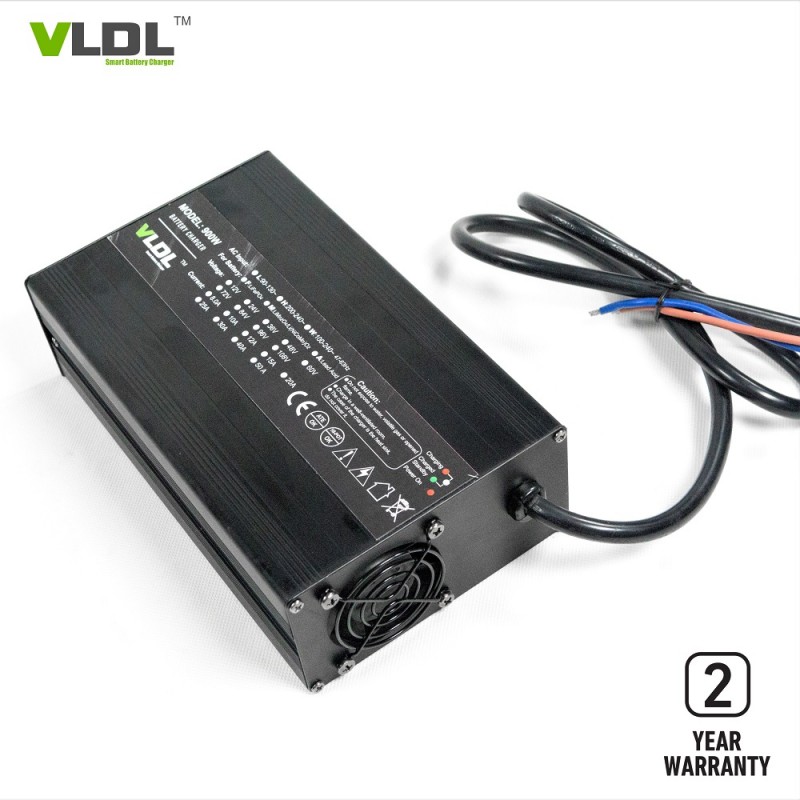

12V 40A LiFePO4 battery charger

Smart 12V 14.6V 40A LiFePO4 battery charger

Brief Description:

LiFePO4 battery charger 12 volts 40 amps, input with AC 110 / 230Vac and rated output voltatge is DC 12V 40A. Smart max charging voltage is 14.6V for LiFePO4 batteries. Intelligent 4 stages charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and protect your battery life maximumly. High quality, factory price and 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 230 x 135 x 70 mm

2) Net weight: 3.0 KG

3) Max charging voltage(CV): 14.6 volts

4) Floating voltage: /

5) Max output current (CC): 40 amps

6) Charging method: Automatic CC, CV

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features

1) Optional charging methods: Lithium or SLA / AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating / trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.
