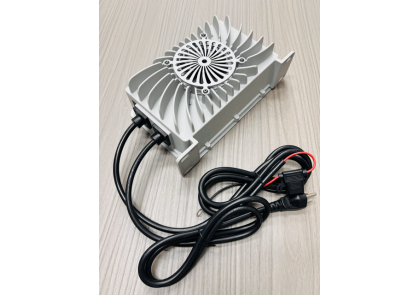

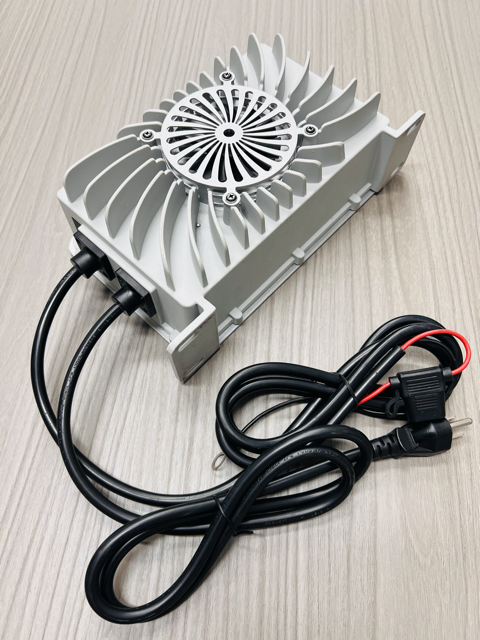

12V 25A Marine Lead Acid Battery Charger
Item No.: UY600S-1225
Input voltage: wide 110-230Vac
Rated output: 12V 25A
Max charging: 14.4V 14.7V customized
Applied to battery types: 12V lead acid battery
Smart Charging: Soft start, CC, CV, Floating
Waterproof rate: IP65/IP66
Case material: Aluminum
Size: 262×134×86 mm
Net weight: 2.8 kg
Warranty: 2 years
- Product Details
12V 25A Marine Lead Acid Charger
Brief Descriptions:
12V 25A output Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 110~230Vac input voltage with PFC.
14.4 / 14.7V customized max charging voltage for lead-acid batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
Power Factor >0.95
2 years warranty, high quality.
Specifications:
AC input voltage: universal 90 to 264Vac with PFC
AC input freq.: 50 / 60 Hz
Rated output: 12V 25Amps
Max charging voltage: 14.4V / 14.7V
Waterproof rate: IP65 / IP66
Dimensions(LxWxH): 262 x 134 x 86 mm
Net weight: 2.8 KG
Housing: Aluminum
Color: silver or black
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU contolled
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 12V AGM, GEL, SLA lead acid batteries.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
