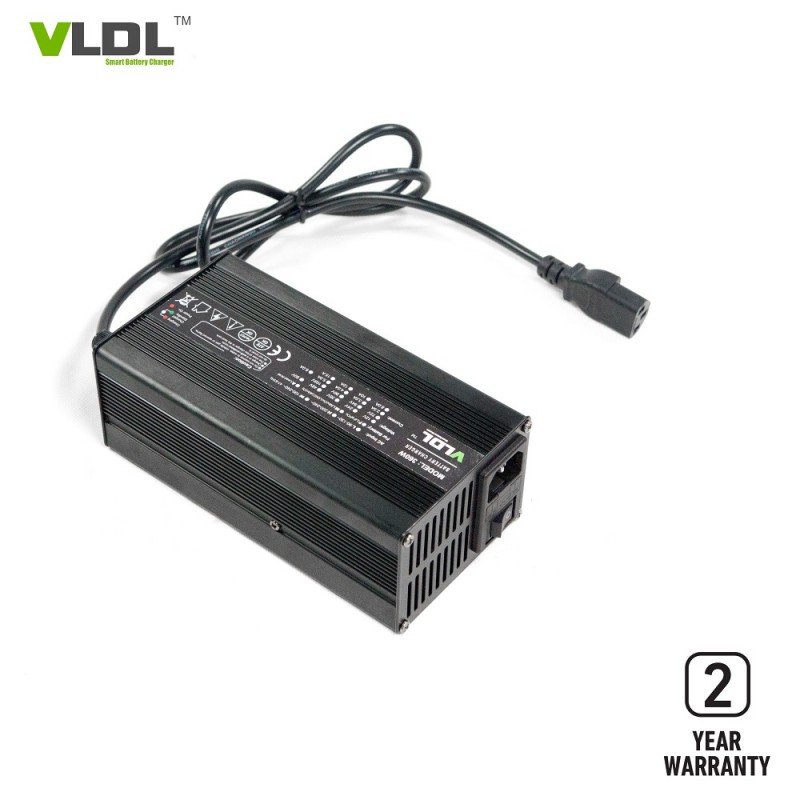

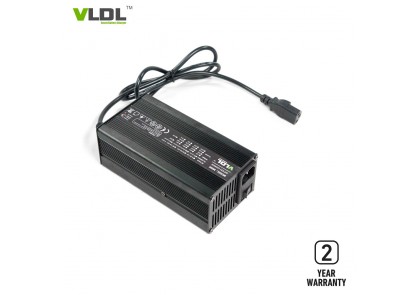

12V 20A Power Cart Battery Charger

12V 20A Power Cart Lead Acid Battery Charger

Factory price and 2 years warranty

Brief Description:

Lead acid 12V 20Amps intelligent battery charger is designed for lithium battery, input with single 110 or 230Vac and rated output voltage is 12 Volt 20 amps. Smart max charging voltage is 14.7V for AGM, GEL, SLA type batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life maximumly. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110 or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

Dimensions(LxWxH): 170 x 90 x 60 mm

Net weight: 1.5 KG

Max charging voltage(CV): 14.4V or 14.7V

Floating voltage: 13.8V

Max output current (CC): 20 amps

Charging method: Pre-charge, CC, CV, floating / trickle or shut off

AC input voltage: 110 or 230Vac

AC input freq.: 50 / 60 Hz

AC plug: customized by user's country

Output connector type: customized by applications

Enclosure: Aluminum
