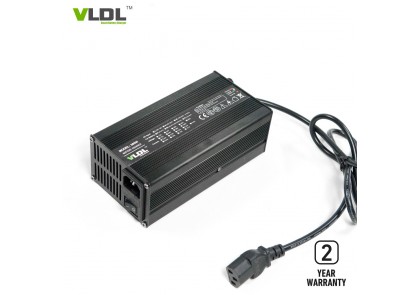

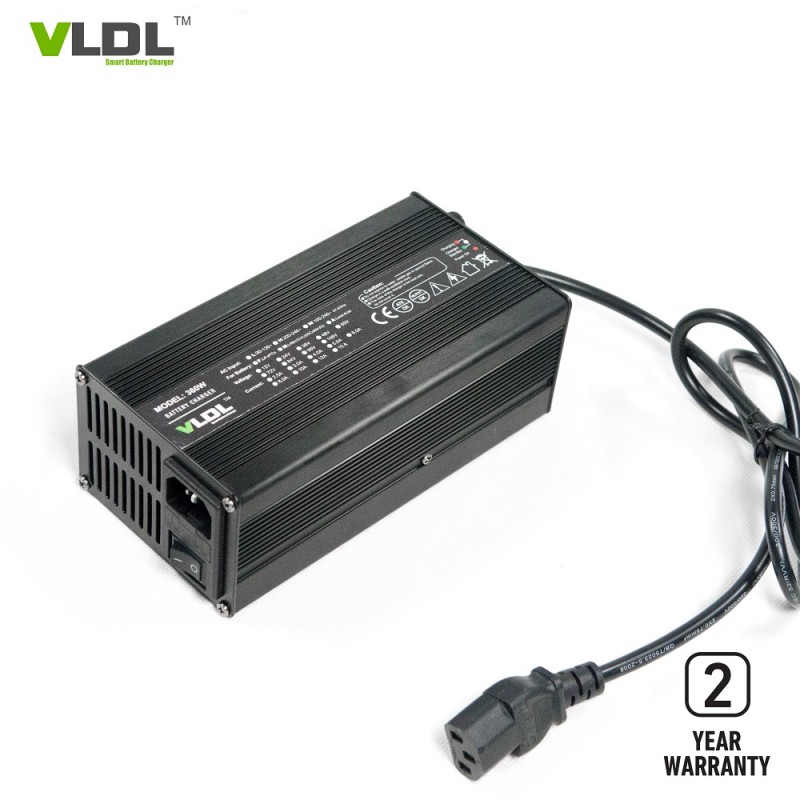

12V 20A PFC Battery Charger

12V 20A PFC Battery Charger For Lithium or Lead-acid Batteries, Suit For AC Power From Generator

Brief Description:

PFC 12V 20Amps intelligent battery charger is designed for lithium or lead acid battery, input with worldwide 110 to 230Vac with PFC circuit and rated output voltatge is 12 Volt 20 amps. Smart max charging voltage is 14.7V for lead acid type batteries and 14.4 / 14.6V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac(90 ~ 264Vac) with PFC, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.



Technical Specs.:

Dimensions(LxWxH): 212 x 105 x 60 mm

Net weight: 1.5 KG

Max charging voltage(CV): 14.4 / 14.6 volts

Floating voltage: customized

Max output current (CC): 20 amps

Charging method: pre-charge, CC, CV, floating / trickle or shut off

AC input voltage: 90~264 Vac with PFC

AC input freq.: 50 / 60 Hz

AC plug: customized by user's country

Output connector type: customized by applications

Enclosure: Aluminum



Danl New Energy Co., Limited is pleased to present our latest product the 12V 20A Battery Charger. This top-quality battery charger is designed with universal input that supports 110-230Vac, making it perfect for use in a variety of settings and regions around the world. Our smart pre-charger ensures that your battery is fully charged before beginning the charging process, maximizing the lifespan of your battery and ensuring a safe charging experience.


Designed for use with 12V lithium battery systems, this charger provides both CC and CV charging modes, which help ensure that your battery is charged quickly and. The CC (constant current) mode provides a steady stream of current to the battery, while the CV (constant voltage) mode regulates the voltage to avoid overcharging.


Our 12V 20A Battery Charger is manufactured to the highest standards of quality and safety, using only the best materials and components available. As a result, chargers are built to last, providing reliable and efficient charging performance for years to come. And with our factory-direct pricing, you can enjoy all the advantages of a high-quality battery charger without breaking the bank.


Danl New Energy Co., Limited is a leading battery charger manufacturer based in China, with a reputation for excellence in the. Our products are trusted by customers around the world, who rely on us to provide top-quality charging solutions for a wide range of applications. Every charger we manufacture is rigorously tested to ensure premium quality and maximum performance, giving you peace of mind and confidence in your purchase.


In conclusion, if you're looking for a high-quality, versatile and cost-effective battery charger for your 12V lithium, look no further than Danl New Energy Co., Limited. Our 12V 20A Battery Charger combines advanced features, craftsmanship, and affordability like no other product on the market.
