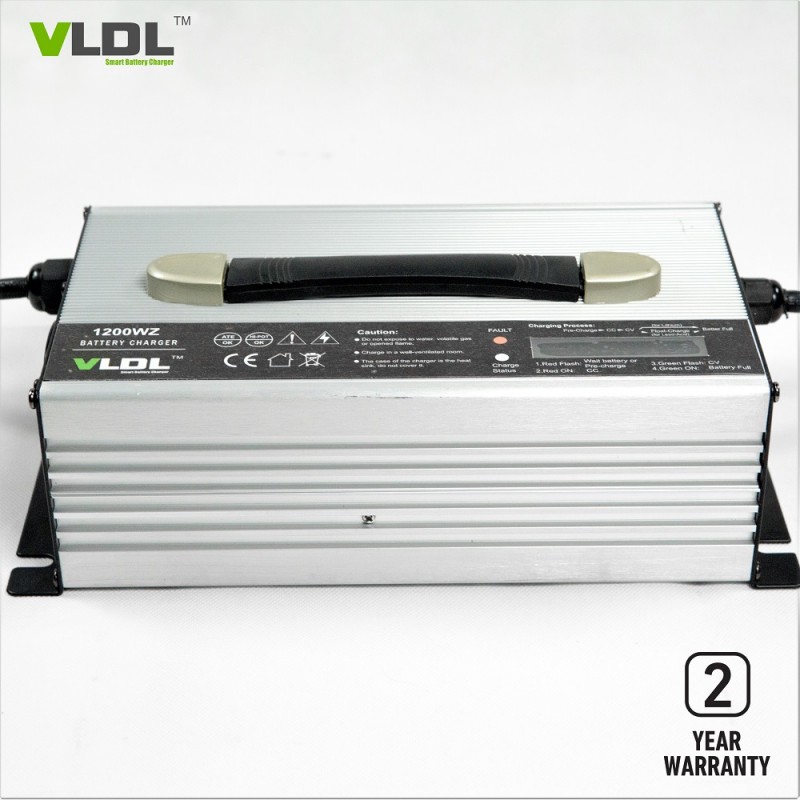

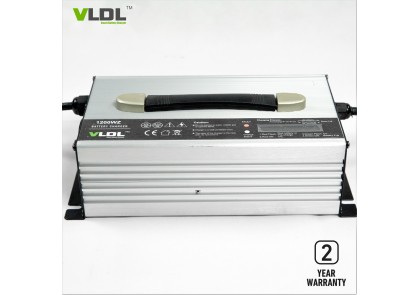

12V 14.6V 100A LiFePO4 Battery Charger
Item No.: UY2500-12100
Case material: Aluminum
AC input voltage: 110V or 230V
Rated output: 12V 100A
Max charging: 14.6Vdc
Applied to battery: 12V LiFePO4 batteries
Charging method: Auto. CC, CV, Cut-off
Size: 380 x 150 x 90 mm
Net weight: 5.5 kg
Warranty: 2 years
- Product Details
12V 14.6V 100A LiFePO4 Battery Charger
Brief Description:
12V 100A smart LiFePO4 battery charger, AC input voltage is 110 / 230V and rated output voltage is 12V 100A. Smart max charging voltage is 14.6 for 12V LiFePO4 batteries or customize by your batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life maximumly. High quality, factory price and 2 years warranty.
Features
Optional charging methods for: 12V LiFePO4 batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Single Input 110Vac or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 3 steps charge: CC, CV, floating/trickle or shut-off.
Protections: Short circuit, over-voltage, over-temperature, reverse polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 380 x 150 x 90 mm
Net weight: 5.5 KG
Max charging voltage(CV): 14.6Vdc
Max output current (CC): 100 amps
Charging method: CC, CV, Cut-off
AC input voltage: 110 or 230Vac
AC input freq.: 50 / 60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
| Output series: 2,500W Size: 380×150×90 mm Net weight: 5.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL12100L | 12V LiFePO4 Battery |
|
14.6V | 100A | CC5~8% |
| VL12100 | 12V Lead-acid Battery | 13.5V | 14.7V | 100A | CC20% | |
| VL14100 | 14V AGM Battery | 13.5V | 14.4V | 100A | CC20% | |
| VL16100L | 16V LiFePO4 Battery |
|
18.2V | 100A | CC5~8% | |
| VL2460LM | 24V Li-MnO2 Battery |
|
29.4V | 60A | CC5~8% | |
| VL2460L | 24V LiFePO4 Battery |
|
29.2V | 60A | CC5~8% | |
| VL2460 | 24V Lead-acid Battery | 27.6V | 29.4V | 60A | CC20% | |
| VL3640LM | 36V Li-MnO2 Battery |
|
42V | 40A | CC5~8% | |
| VL3640L | 36V LiFePO4 Battery |
|
43.8V | 40A | CC5~8% | |
| VL3640 | 36V Lead-acid Battery | 41.4V | 44.1V | 40A | CC20% | |
| VL4830LM | 48V Li-MnO2 Battery |
|
54.6V | 30A | CC5~8% | |
| VL4830L | 48V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL4830 | 48V Lead-acid Battery | 55.2V | 58.8V | 30A | CC20% | |
| VL6025L | 60V LiFePO4 Battery |
|
73V | 25A | CC5~8% | |
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7220L | 72V LiFePO4 Battery |
|
87.6V | 20A | CC5~8% | |
| VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
| VL8418L | 84V LiFePO4 Battery |
|
102.2V | 18A | CC5~8% | |
| VL8418 | 84V Lead-acid Battery | 94.5V | 102.9V | 18A | CC20% | |
| VL9616L | 96V LiFePO4 Battery |
|
116.8V | 16A | CC5~8% | |
| VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
