12V 14.4V 6A Lithium Battery Charger
Item No.: VL1206L
Case material: Aluminum
Input voltage: wide 110-230Vac
Rated output: 12Vdc, 6Amps
Max charging: 14.4V / 14.6V customized
Applied toBattery Types: 12V lithium ion battery
Charging method: auto. CC, CV or Cut-off
Size: 120x 69 x 45mm
Net weight: 0.6kg
Warranty: 2 years
- Product Details

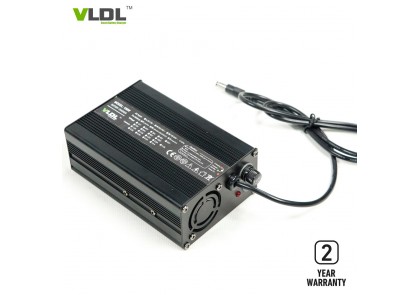

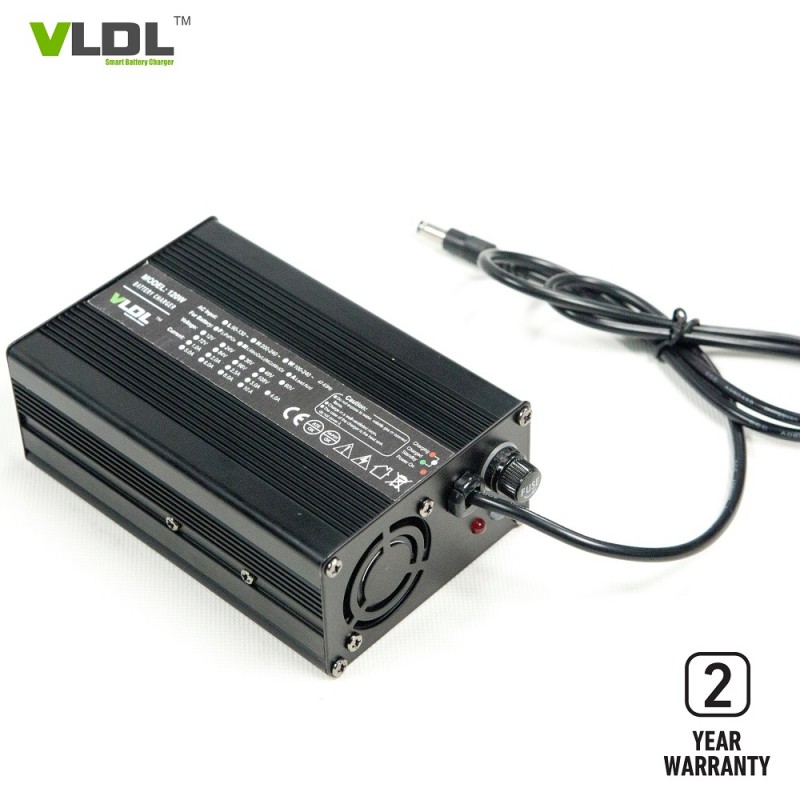

Smart 12V 14.4V 6A Lithium-ion Battery Charger
Brief Description:
Lithium ion battery charger 12 volt 6 amps with universal 110 - 230 vac input. Black or silver aluminum casing. Rated ouput 12V 6A and max charging voltage is 14.4 or 14.6V.
As a swtiching mode technology battery charger, it has small size and light weight, much portable for user. This charger has intelligent 4 steps charging method and charge your lithium battery types inclduing LiFePO4, Li ion, LiMO2 batteries with fast speed and high efficiency. It is a fully automatic charging charger, just power on and connect it to your battery and then leave it alone.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
1 LED: LED Red-Charging, LED Green-Fully Charged or Stand by
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 85%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
Dimensions(LxWxH): 120 x 69 x 45 MM
Net weight: 0.6 KG
Max charging voltage(CV): 14.4 / 14.6 volts
Max output current (CC): 6 amps
Charging method: pre-charge, CC, CV, floating / trickle or shut off
AC input voltage: 110 - 240Vac
AC input freq.: 50/60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
Output series: 120W Mini Size: 120×69×45 mm Net weight: 0.6 KG | ||||||
Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1206L | 12V LiFePO4 Battery |
|
14.6V | 6A | CC5~8% |
VL1206 | 12V Lead-acid Battery | 13.5V | 14.7V | 6A | CC20% | |
VL2404LM | 24V Li-MnO2 Battery |
|
29.4V | 4A | CC5~8% | |
VL2404 | 24V Lead-acid Battery | 27.6V | 29.4V | 4A | CC20% | |
VL3603L | 36V Li-MnO2 Battery |
|
42V | 3A | CC5~8% | |
VL3602 | 36V Lead-acid Battery | 41.4V | 44.1V | 2A | CC20% | |
VL4802LM | 48V Li-MnO2 Battery |
|
54.6V | 2A | CC5~8% | |
VL4802 | 48V Lead-acid Battery | 55.2V | 58.8V | 2A | CC20% | |
Note: customized input / output / plug type / connectors are available. |
