12V 10A Lead-acid Battery Charger

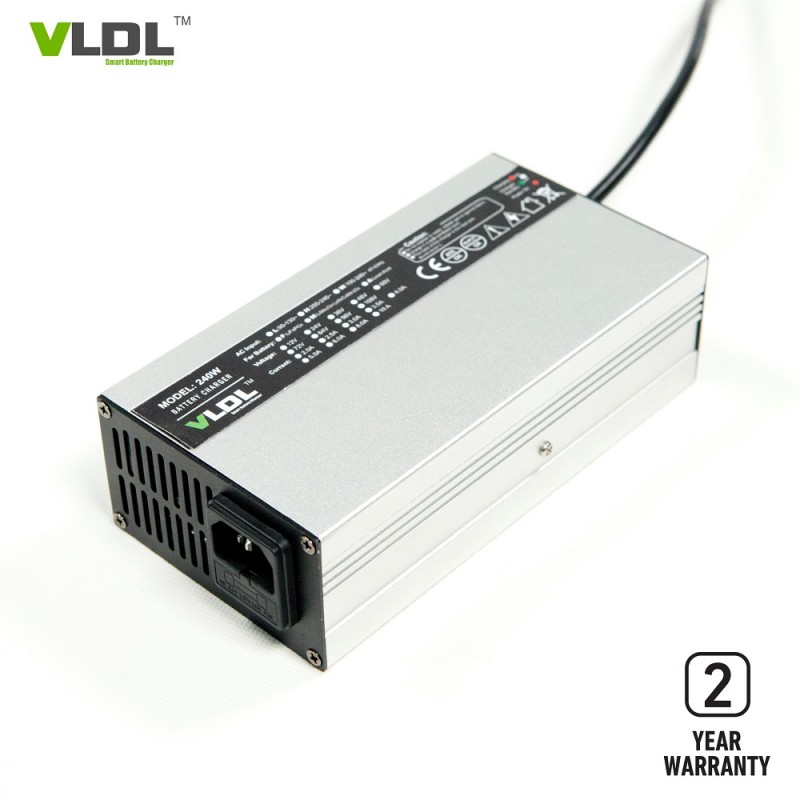

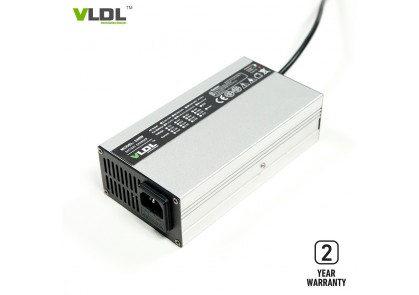

Lead-acid/ AGM Battery Charger 12V 10A Intelligent 4 Steps With Aluminum Casing

Brief Descriptions:

Designed for 12V AGM racing battery input with worldwide 110 to 230Vac and rated output voltatge is 12V 10A. Smart max charging voltage is 14.4V and floating 13.5V for AGM batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 170 x 90 x 50 MM

2) Net weight: 1.0 KG

3) Max charging voltage(CV): 14.4 volts

4) Floating voltage: 13.5 volts

5) Max output current (CC): 10 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 240 Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 240W      Size: 170×90×50 mm      Net weight: 1.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 85~264V Frequency: 47~63HZ	VL1210L	12V LiFePO4 Battery		14.6V	10A	CC5~8%
	VL1210	12V Lead-acid Battery	13.5V	14.7V	10A	CC20%
	VL2407LM	24V Li-MnO2 Battery		29.4V	7A	CC5~8%
	VL2407L	24V LiFePO4 Battery		29.2V	7A	CC5~8%
	VL2407	24V Lead-acid Battery	27.6V	29.4V	7A	CC20%
	VL3605LM	36V Li-MnO2 Battery		42V	5A	CC5~8%
	VL3605L	36V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL3605	36V Lead-acid Battery	41.4V	44.1V	5A	CC20%
	VL4804LM	48V Li-MnO2 Battery		54.6V	4A	CC5~8%
	VL4804L	48V LiFePO4 Battery		43.8V	4A	CC5~8%
	VL4804	48V Lead-acid Battery	55.2V	58.8V	4A	CC20%
	VL6003L	60V LiFePO4 Battery		73V	3A	CC5~8%
	VL6003	60V Lead-acid Battery	67.5V	73.5V	3A	CC20%
	VL72025L	72V LiFePO4 Battery		87.6V	2.5A	CC5~8%
	VL72025	72V Lead-acid Battery	81V	88.2V	2.5A	CC20%
Note: customized input / output / plug type / connectors are available.

Battery Knowledge

Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.

Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?

A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.

Battery Charger Knowledge

Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.

Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
